- Full bore
- Australian Gas Association approval #5301
- Conical PTFE stem sealing system
- Blow-out proof stem
- Must be operated in a fully open or closed position
- All valves pressure tested during production
- Size range: 15mm (1/2″) to 25mm (1″)

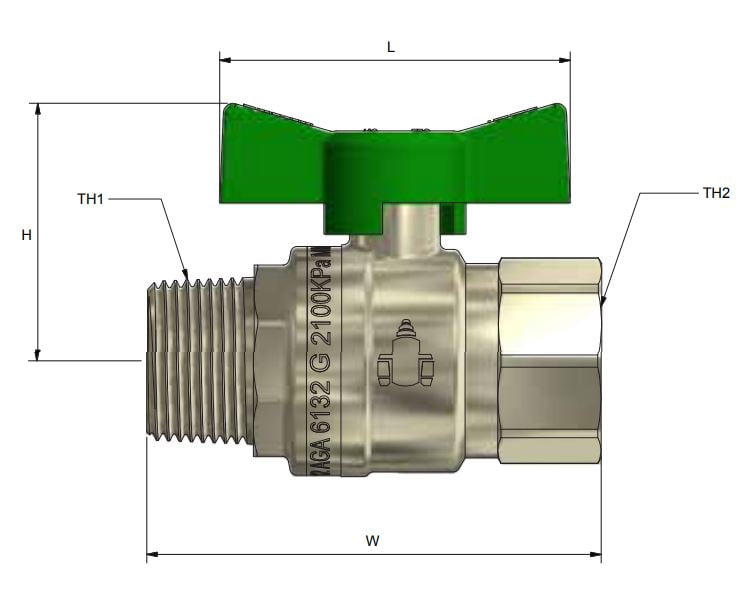

Size | L | H | W | TH1 | TH2 |
---|---|---|---|---|---|
15mm (1/2") | 56 | 38 | 64 | R 1/2" | Rp 1/2" |
20mm (3/4") | 56 | 41 | 73 | R 3/4" | Rp 3/4" |
25mm (1") | 56 | 45 | 87 | R1" | Rp1" |
Part | Material |
---|---|
Body | DR Brass |
Seal | PTFE |
Ball | DR Brass |
Bonnet | DR Brass |
Sprindle | DR Brass |
O Ring | FKM |
Handle | Aluminium |
Lock Nut | Stainless Steel |
- Temperature range: -20°C to 100°C
- Maximum operating pressure at nominal temperatures: 2100 kPa
- According to AS 5601 Table 4.1, the operating pressure of consumer gas piping systems containing copper is 200 kPa
