Specifications:
- Maximum working temperature 1°C to 95°C
- Maximum pressure rating 1600kPa
Features:
- Watermark approved
- Brass and chrome finish
- Tested and certified to AS 3688
Elbow | DR Brass |
Compression Nut | DR Brass |

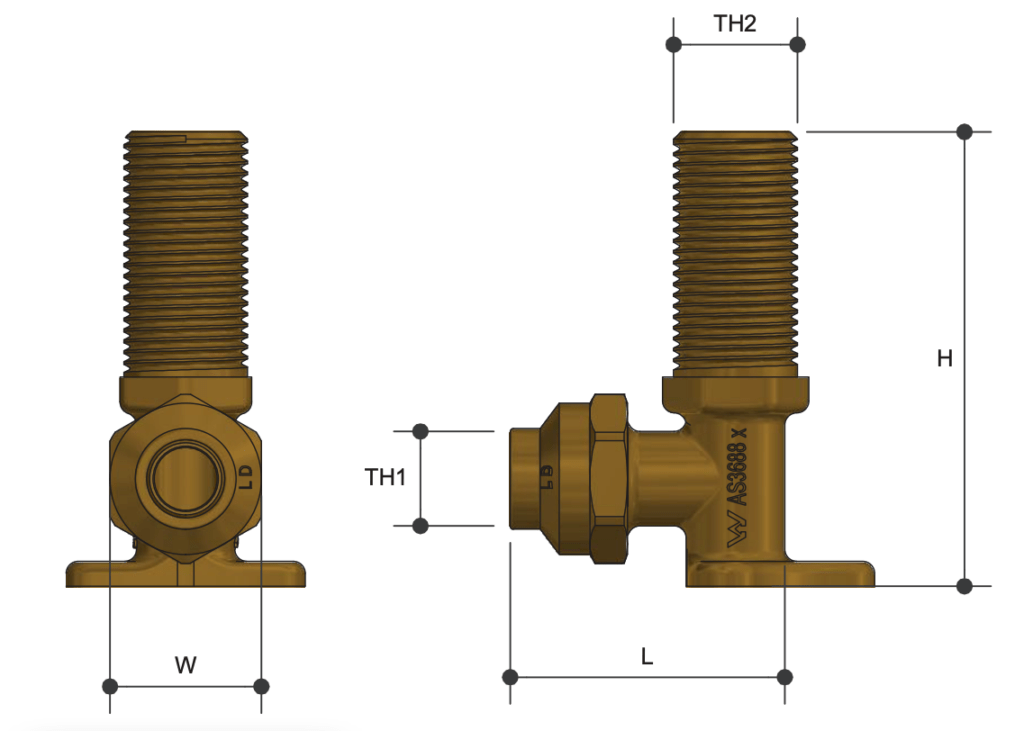

Size | L | H | W | TH1 | TH2 |
15MI X 15C | 46 | 76 | 25 | 15C | G 1/2″ |
15MI X 20C | 53 | 81 | 32 | 20C | G 1/2″ |
