Name: PVC Large Diameter Pipe Glue 1L
Brand: Flo Right
SKU: LBSG-1L
Availability: OutOfStock

PVC Large Diameter Pipe Glue 1L

FREEshipping on orders over $100 Buy More,SaveMore LowPrices Guaranteed

Original price was: $55.00.Current price is: $46.70. Inc. GST

Out of stock

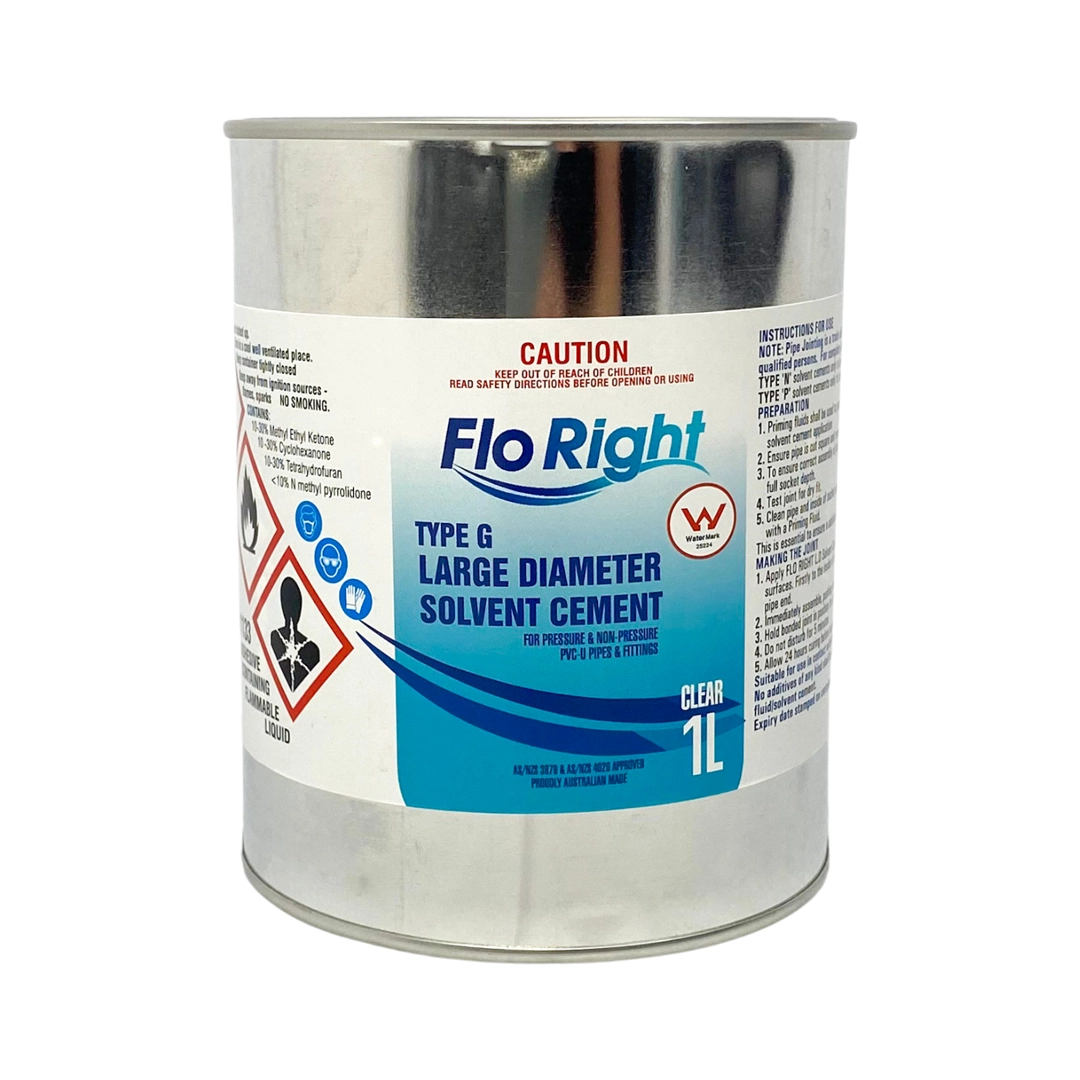

Manufactured in Australia, the Type G Large Bore Solvent Cement is specially developed for bonding Large Bore uPVC pipes, fittings, and sheets, serving a vital role in commercial and industrial projects like irrigation, commercial pools, and water management systems including sewerage and stormwater drainage. When applied as per the AS/NZS 2032 standards, it guarantees waterproof bonds, essential for long-lasting infrastructure.This adhesive stands out for its gap-filling property, tailored as a thixotropic rigid PVC cement that benefits large-scale installations with diameters up to 800 mm. Its formulation allows for extended working times, making it ideal for environments requiring durable bonds under various conditions, including tropical climates. Designed for versatility, it supports both pressure and non-pressure systems, proving indispensable across a wide range of applications.Applicable for joining pipes and fittings in both pressurized and drain systems, it excels in environments with large diameters and high temperatures, over 35°C. It ensures a secure fit for pressures up to 16 bar (PN 16) and is compatible with EN1329, 1452, 1453, 1455, and ISO15493 (PVC) standards, making the Type G Large Bore Solvent Cement a key component in efficient and reliable water management infrastructure.

Complete your PVC Pipe System or project with our big range of competitively priced PVC Pipe Fittings.

PVC Pressure Rating Table

Pipe Size	DN - Nominal Diameter (mm)	Min. Mean Outside Diameter (mm)	Pressure Rating (max PSI)	Pressure Rating (Max kPa)	Max Cont. Operating Temperature	PN6 (Mean ID)	PN9 (Mean ID)	PN12 (Mean ID)	PN18 (Mean ID)
1/2"	15	21.2	600	4137	60°C (140°F)				17.8
3/4"	20	26.6	480	3306	60°C (140°F)			23.7	22.4
1"	25	33.4	450	3103	60°C (140°F)			29.8	28.1
1 1/4"	32	42.1	370	2550	60°C (140°F)		38.5	37.5	35.4
1 1/2"	40	48.1	330	2276	60°C (140°F)	45.2	44.1	42.8	40.5
2"	50	60.2	280	1932	60°C (140°F)	56.8	55.2	53.7	50.5
2 1/2"	65	75.2	300	2084	60°C (140°F)	71	68.9	67	63.2
3"	80	88.7	260	1792	60°C (140°F)	83.7	81.3	79	74.6
4"	100	114.1	220	1516	60°C (140°F)	107.8	104.6	101.7	96
5"	125	140	190	1308	60°C (140°F)	132.2	128.4	124.9
6"	150	160	180	1248	60°C (140°F)	151.3	146.9	142.7	134.7
8"	200	225	160	1103	60°C (140°F)		185

Australian Standard Measurement and Sizing Chart

bsp threaded fitting pipe sizing diameter outer inner diagram

	Size	Male Fitting End		Female Fitting End	Threads Per Inch	Actual Barb End
Metric Size (mm)	Imperial Size (inch)	Inner Diameter (mm)	Outer Diameter (mm)	Inner Diameter (mm)		Outer Diameter (mm)
6	1/8"	3.18	10.16	10.16	28	3.18
7	3/16"				28	4
8	1/4"	6.35	13.66	13.66	19	6.35
9	5/16"				19	8
10	3/8"	9.53	17.17	17.17	19	9.53
15	1/2"	12.7	21.51	21.51	14	12.7
18	5/8"				14	15.88
20	3/4"	19.04	27	27	14	19.04
25	1"	25.4	33.93	33.93	11	25.4
32	11/4"	31.75	42.59	42.59	11	31.75
40	11/2"	38.1	48.48	48.48	11	38.1
50	2"	50.8	60.47	60.47	11	50.8
65	21/2"	63.5	76.09	76.09	11	63.5
80	3"	76.26	88.87	88.87	11	76.26
100	4"	101.07	114.14	114.14	11	101.07
150	6"	152	165.12	165.12	11	152

Warranty

All products are covered by the full manufacturer’s warranty of 2 years. Should you have an item that is faulty we are happy to replace with a new one. Please contact us with details and/or photos of the fault as well as your contact details so we can discuss the issue and organise a replacement at our cost, or if you prefer we can provide a full refund. In some cases, we may request the item be returned to us depending on the issue.
