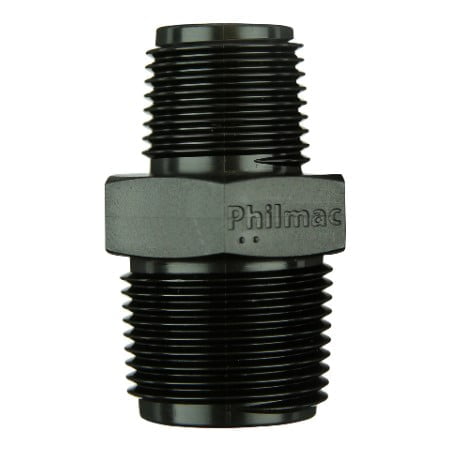

Philmac Poly Hex Reducing Nipple Male x Male BSP Thread Pipe Fitting

Brand: Philmac

Located in: Fittings > Poly Pipe Fittings

The Philmac Polypropylene Reducing Nipple is a game changer when it comes to seamless pipe size transitions, offering UV resistance, chemical durability, and easy installation across diverse water systems. Its robust design ensures long-term reliability and versatility in agricultural to industrial applications.

FREEshipping on orders over $100 Buy More,SaveMore LowPrices Guaranteed

Download Datasheet Philmac Poly Hex Reducing Nipple Male x Male BSP Thread Pipe ... PDF

View Brochure Philmac Poly Hex Reducing Nipple Male x Male BSP T ... PDF

$1.60 – $28.78 Inc. GST

Size

Clear

Spend $200, get10%off Spend $300, get15%off Spend $400, get20%off

Note: Items on sale are exempt from additional discounts.

Description

Philmac Polypropylene Reducing Nipple: A Plumbing Essential

The Philmac Polypropylene Reducing Nipple emerges as an indispensable fitting in the realm of modern plumbing and irrigation systems. Fabricated from UV-resistant polypropylene, it guarantees both longevity and dependable performance. This crucial fitting is engineered for making seamless connections that effectively reduce the size from one pipe end to another with outstanding precision.

Superior Material and Compliance

Made in Australia from high-strength polypropylene, this nipple excels in resistance to UV radiation and chemicals, promising an extended service life. It meets stringent standards including AS/NZ 4020 and WaterMark certifications, underscoring its exceptional quality and reliability for plumbing needs across various sectors.

Versatile and User-friendly Design

With sizes ranging from ½” to 4”, it accommodates diverse plumbing requirements. The hexagonal body design ensures an easy wrench grip for simpler installations. This fitting is designed to withstand pressures up to PN16 (for sizes up to 2”), making it suitable for a myriad of applications with ease of installation as a key feature.

Wide Application Spectrum

The Philmac Polypropylene Reducing Nipple is vital across multiple contexts – from agricultural irrigation systems to residential water supply. It excels in facilitating connections between pipes of different diameters, ensuring a leak-proof seal vital for efficient water management. Its chemical resistance lends it versatility for fluid transport tasks, offering an effective solution for adapting pipe sizes economically.

Installation Convenience and Environmental Durability

Designed for effortless installation, this nipple obviates the need for special tools or elaborate preparation, ensuring quick and cost-effective installations and repairs. Its durability and environmental resistance make it suitable for harsh outdoor conditions, including direct exposure to sunlight and chemicals, highlighting its suitability for both exposed and sensitive applications.

As more than a mere plumbing accessory, the Philmac Polypropylene Reducing Nipple stands as a comprehensive solution to fluid management challenges. Its robust build, ease of installation, and compatibility with various piping systems render it an essential component for ensuring the integrity and efficiency of water systems for professionals and DIY enthusiasts alike.

Download more details below:

**Please note the following sizes are not supplied in the Philmac brand;

10X8mm (3/8″ x 1/4″)
15X8mm (1/2″ x 1/4″)
15X10mm (1/2″ x 3/8″)
20X10mm (3/4″ x 3/8″)

PHILMAC BSP Fittings Benefits

Hexagonal Design: Smart hexagonal design makes the fittings compatible with tools and ensures that Philmac BSP threaded fittings are extremely easy to install.
Quality materials: Philmac threaded fittings are manufactured from high-quality materials that ensure strong connections for many years. The material also has a high degree of UV resistance to ensure long-term performance even in direct sunlight.
Reliable, high-quality threads: Philmac threaded fittings are manufactured in accordance with the company’s ISO9001 quality-endorsed standard. When using a Philmac BSP threaded fitting you can be sure the thread is to standard and will work every time.
Wide range: Philmac threaded fittings are available in sizes up to 4” and in the full range of configurations to ensure a fitting for every application.

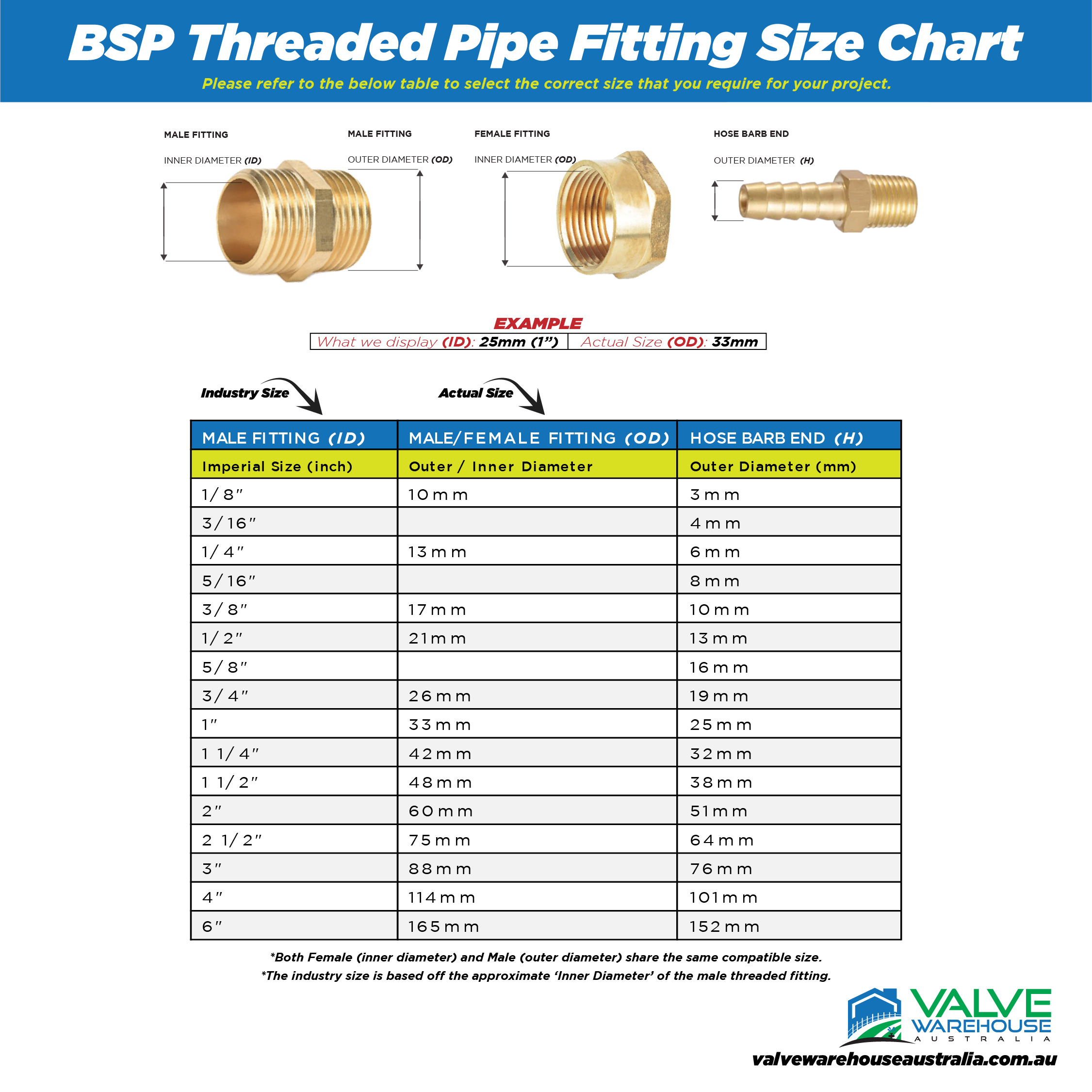

BSP Threaded Pipe Fitting Size Chart

	Size	Male Fitting End		Female Fitting End	Threads Per Inch	Actual Barb End
Metric Size (mm)	Imperial Size (inch)	Inner Diameter (mm)	Outer Diameter (mm)	Inner Diameter (mm)		Outer Diameter (mm)
6	1/8"	3.18	10.16	10.16	28	3.18
7	3/16"				28	4
8	1/4"	6.35	13.66	13.66	19	6.35
9	5/16"				19	8
10	3/8"	9.53	17.17	17.17	19	9.53
15	1/2"	12.7	21.51	21.51	14	12.7
18	5/8"				14	15.88
20	3/4"	19.04	27	27	14	19.04
25	1"	25.4	33.93	33.93	11	25.4
32	11/4"	31.75	42.59	42.59	11	31.75
40	11/2"	38.1	48.48	48.48	11	38.1
50	2"	50.8	60.47	60.47	11	50.8
65	21/2"	63.5	76.09	76.09	11	63.5
80	3"	76.26	88.87	88.87	11	76.26
100	4"	101.07	114.14	114.14	11	101.07
150	6"	152	165.12	165.12	11	152

Column Definitions:
Size (Imperial): Size designated to match the ID of Fitting in inches

Size (Metric): Size designated to match the ID of Fitting in mm

Male Thread ID (mm): The actual Inside diameter of the Male Fitting in millimetres.

Male Thread OD (mm): The actual outside diameter of the Male Fitting in millimetres

Female Thread ID (mm): The actual Inside diameter of the Female Fitting in millimetres.

Actual Barb OD (mm): The actual outside diameter of the Barbed fitting in millimetres.

Warranty

All products are covered by the full manufacturer’s warranty of 2 years. Should you have an item that is faulty we are happy to replace with a new one. Please contact us with details and/or photos of the fault as well as your contact details so we can discuss the issue and organise a replacement at our cost, or if you prefer we can provide a full refund. In some cases, we may request the item be returned to us depending on the issue.

Made in Australia, these fittings proudly carry the Certified Australian Standard mark, ensuring their exceptional quality and adherence to industry standards. Plus, with a 20-year warranty, you can have peace of mind knowing that these fittings are built to last.
