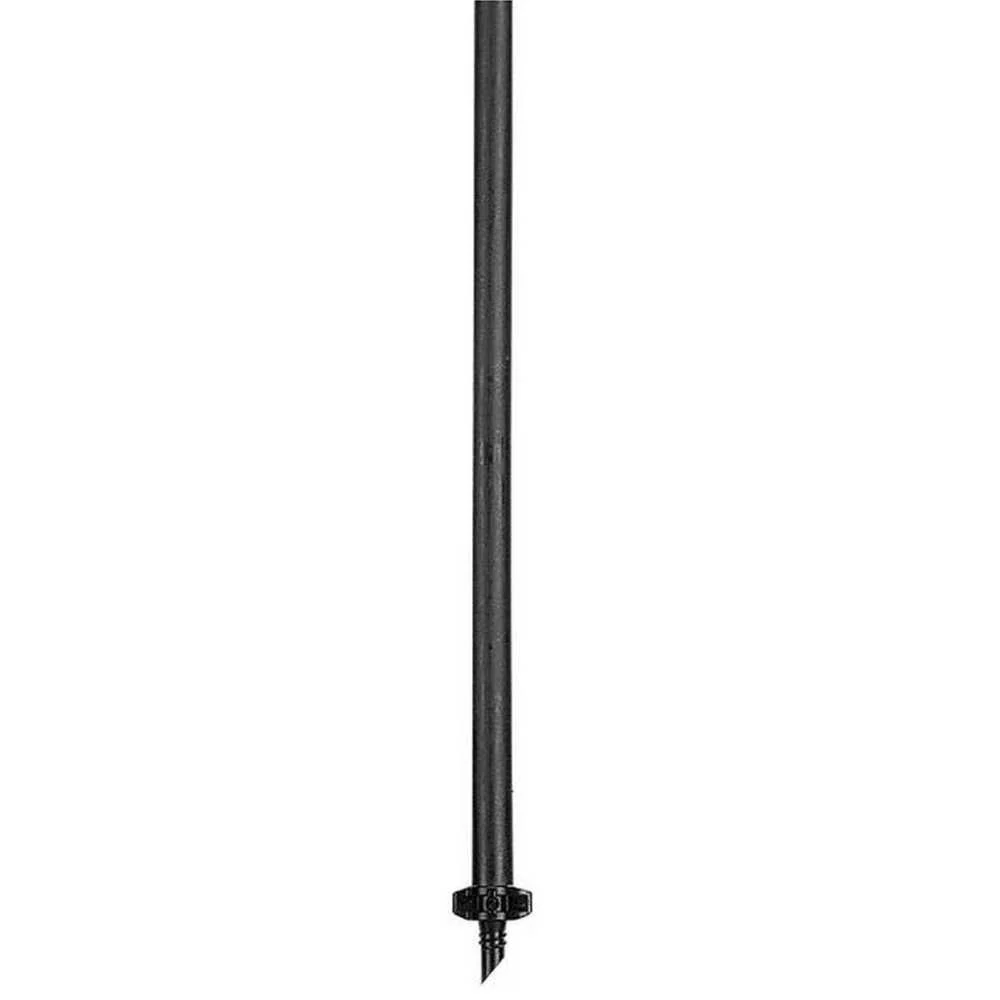

These 4mm Rigid Riser Tubes are designed for efficient irrigation, featuring a threaded adaptor that connects directly to low-density poly pipe or flexible tubing. A micro spray jet can be screwed into the top, elevating the spray for effective water coverage. The riser can be clipped into a stake to keep it vertical, with the Landscape stake recommended for added flexibility. This allows for easy repositioning of the spray or sprinkler as needed, ideal for residential gardens, agricultural fields, and commercial landscaping projects, promoting healthy plant growth while conserving water.
Philmac’s micro irrigation solutions are crafted for both landscape and agriculture needs. The static fittings have been designed to suit Low Density Polyethylene (LDPE) pipe with an expected maximum pressure of 300 kPa. Metric sizes referred to from 4 to 32 mm are nominal inside diameter, corresponding to imperial sizes: 1/4” (6 mm), 3/8” (10 mm), 1/2” (13 mm), 5/8” (16 mm), 3/4” (19 mm), 1” (25 mm), and 1 1/4” (32 mm). These fittings and accessories, made from high-quality materials, work seamlessly with a broad range of LDPE pipe fittings, including sprinklers, drippers, and spray jets. This ensures reliable performance across different irrigation tasks.
Philmac also offers barbed elbows, barbed joiners and reducing joiners, as well as barbed tees and reducing tees, to ensure a flexible and efficient micro irrigation system setup. These components are essential for connecting different sizes and configurations of pipes and tubes, making the installation process straightforward and adaptable to various irrigation needs.
Features
- Type: Rigid Riser Tube with Adaptor
- Inlet Size: 4mm threaded adaptor
- Length Sizes: 200mm, 300mm, 450mm
- Material: Polyethylene
- Compatibility: Works seamlessly with a broad range of LDPE pipe fittings, including sprinklers, drippers, and spray jets.
- Applications: Suitable for domestic gardens, commercial landscapes, and horticultural applications.
Size | Male Fitting End | Female Fitting End | Threads Per Inch | Actual Barb End | ||
---|---|---|---|---|---|---|
Metric Size (mm) | Imperial Size (inch) | Inner Diameter (mm) | Outer Diameter (mm) | Inner Diameter (mm) | Outer Diameter (mm) | |
6 | 1/8" | 3.18 | 10.16 | 10.16 | 28 | 3.18 |
7 | 3/16" | 28 | 4 | |||
8 | 1/4" | 6.35 | 13.66 | 13.66 | 19 | 6.35 |
9 | 5/16" | 19 | 8 | |||
10 | 3/8" | 9.53 | 17.17 | 17.17 | 19 | 9.53 |
15 | 1/2" | 12.7 | 21.51 | 21.51 | 14 | 12.7 |
18 | 5/8" | 14 | 15.88 | |||
20 | 3/4" | 19.04 | 27 | 27 | 14 | 19.04 |
25 | 1" | 25.4 | 33.93 | 33.93 | 11 | 25.4 |
32 | 11/4" | 31.75 | 42.59 | 42.59 | 11 | 31.75 |
40 | 11/2" | 38.1 | 48.48 | 48.48 | 11 | 38.1 |
50 | 2" | 50.8 | 60.47 | 60.47 | 11 | 50.8 |
65 | 21/2" | 63.5 | 76.09 | 76.09 | 11 | 63.5 |
80 | 3" | 76.26 | 88.87 | 88.87 | 11 | 76.26 |
100 | 4" | 101.07 | 114.14 | 114.14 | 11 | 101.07 |
150 | 6" | 152 | 165.12 | 165.12 | 11 | 152 |
