Repair plugs for micro irrigation tubes are essential for keeping irrigation systems efficient and functional. Designed to seal leaks in tubing, they ensure water reaches plants without waste. There are three main types: push-in plugs for small punctures, barbed plugs for a secure hold on larger holes, and compression plugs for high-pressure systems. Installation is simple: locate and cut out the damaged section, insert the appropriate plug, and test for leaks. Repair plugs are a quick, cost-effective, and eco-friendly solution, extending the life of irrigation systems while supporting sustainable water use.
Philmac’s micro irrigation solutions are crafted for both landscape and agriculture needs. The static fittings have been designed to suit Low Density Polyethylene (LDPE) pipe with an expected maximum pressure of 300 kPa. Metric sizes referred to from 4 to 32 mm are nominal inside diameter, corresponding to imperial sizes: 1/4” (6 mm), 3/8” (10 mm), 1/2” (13 mm), 5/8” (16 mm), 3/4” (19 mm), 1” (25 mm), and 1 1/4” (32 mm). These fittings and accessories, made from high-quality materials, work seamlessly with a broad range of LDPE pipe fittings, including sprinklers, drippers, and spray jets. This ensures reliable performance across different irrigation tasks.
Philmac also offers barbed elbows, barbed joiners and reducing joiners, as well as barbed tees and reducing tees, to ensure a flexible and efficient micro irrigation system setup. These components are essential for connecting different sizes and configurations of pipes and tubes, making the installation process straightforward and adaptable to various irrigation needs.
Features

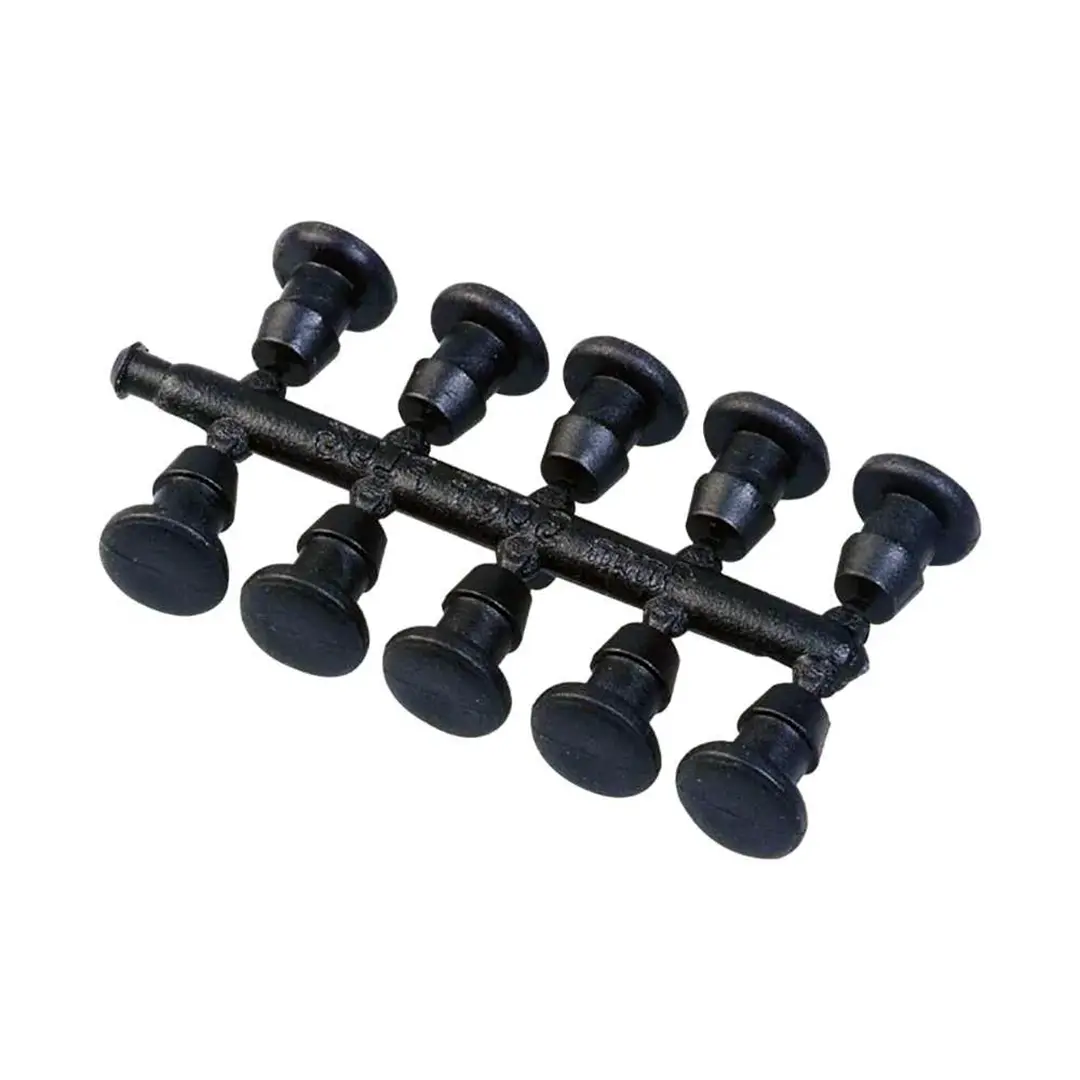

- Type: Repair Plugs
- Size Range: 4mm & 5mm
- Material: Polyethylene
- Compatibility: Works seamlessly with a broad range of LDPE pipe fittings, including sprinklers, drippers, and spray jets.
- Applications: Suitable for domestic gardens, commercial landscapes, and horticultural applications.
Size | Male Fitting End | Female Fitting End | Threads Per Inch | Actual Barb End | ||
---|---|---|---|---|---|---|
Metric Size (mm) | Imperial Size (inch) | Inner Diameter (mm) | Outer Diameter (mm) | Inner Diameter (mm) | Outer Diameter (mm) | |
6 | 1/8" | 3.18 | 10.16 | 10.16 | 28 | 3.18 |
7 | 3/16" | 28 | 4 | |||
8 | 1/4" | 6.35 | 13.66 | 13.66 | 19 | 6.35 |
9 | 5/16" | 19 | 8 | |||
10 | 3/8" | 9.53 | 17.17 | 17.17 | 19 | 9.53 |
15 | 1/2" | 12.7 | 21.51 | 21.51 | 14 | 12.7 |
18 | 5/8" | 14 | 15.88 | |||
20 | 3/4" | 19.04 | 27 | 27 | 14 | 19.04 |
25 | 1" | 25.4 | 33.93 | 33.93 | 11 | 25.4 |
32 | 11/4" | 31.75 | 42.59 | 42.59 | 11 | 31.75 |
40 | 11/2" | 38.1 | 48.48 | 48.48 | 11 | 38.1 |
50 | 2" | 50.8 | 60.47 | 60.47 | 11 | 50.8 |
65 | 21/2" | 63.5 | 76.09 | 76.09 | 11 | 63.5 |
80 | 3" | 76.26 | 88.87 | 88.87 | 11 | 76.26 |
100 | 4" | 101.07 | 114.14 | 114.14 | 11 | 101.07 |
150 | 6" | 152 | 165.12 | 165.12 | 11 | 152 |
