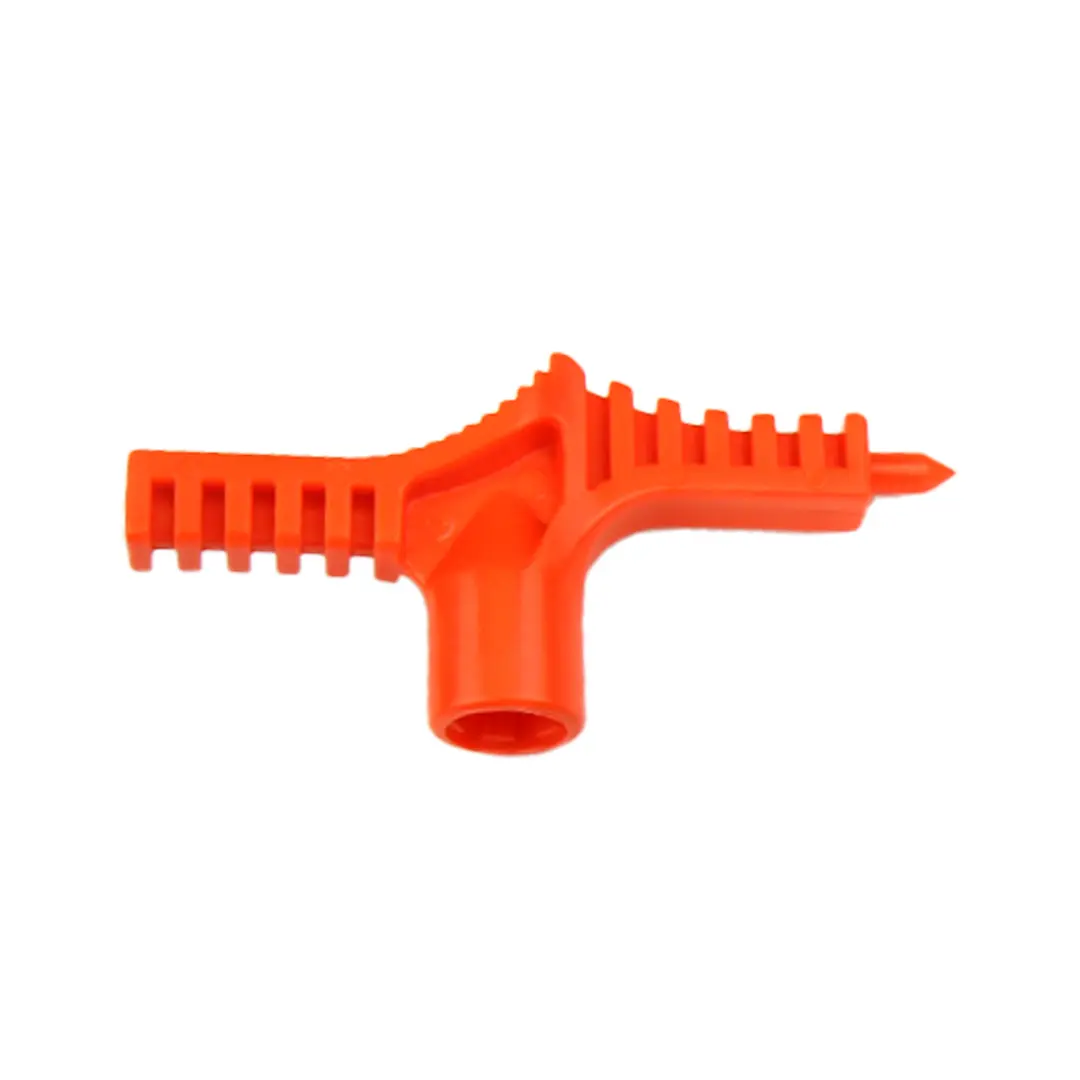

The Philmac Punch and Spanner Tool is a versatile and essential tool for any irrigation setup, designed for ease and durability. Made from heavy-duty plastic and featuring an ergonomic grip, this 4mm punch tool allows for effortless use over long periods. Perfect for creating precise holes in 4mm and 3.9mm flexible tubing, it seamlessly connects with 4mm micro fittings and various dripper emitters, such as Dan Micro Spray Heads, Antelco Octamitter Shrubblers, and other popular products for pots and gardens.
This tool is also ideal for connecting Toro 4mm DripEze into low-density poly pipe, making it a handy choice for garden beds and larger landscape projects. Designed with durability and ease of use in mind, the Philmac Punch and Spanner Tool is an essential addition to any gardener or landscaper’s toolkit, ensuring accurate connections and a streamlined irrigation system.
Philmac’s micro irrigation solutions are crafted for both landscape and agriculture needs. The static fittings have been designed to suit Low Density Polyethylene (LDPE) pipe with an expected maximum pressure of 300 kPa. Metric sizes referred to from 4 to 32 mm are nominal inside diameter, corresponding to imperial sizes: 1/4” (6 mm), 3/8” (10 mm), 1/2” (13 mm), 5/8” (16 mm), 3/4” (19 mm), 1” (25 mm), and 1 1/4” (32 mm). These fittings and accessories, made from high-quality materials, work seamlessly with a broad range of LDPE pipe fittings, including sprinklers, drippers, and spray jets. This ensures reliable performance across different irrigation tasks.
Philmac also offers barbed elbows, barbed joiners and reducing joiners, as well as barbed tees and reducing tees, to ensure a flexible and efficient micro irrigation system setup. These components are essential for connecting different sizes and configurations of pipes and tubes, making the installation process straightforward and adaptable to various irrigation needs.
Features
- Type: Punch & Spanner Tool – 1 & 2 Piece Jet
- Group Type: Hole Punch Tool
- Hole Punch Size: 4mm
- Material: Polyethylene
- Compatibility: Works seamlessly with a broad range of LDPE pipe fittings, including sprinklers, drippers, and spray jets.
- Applications: Suitable for domestic gardens, commercial landscapes, and horticultural applications.
Size | Male Fitting End | Female Fitting End | Threads Per Inch | Actual Barb End | ||
---|---|---|---|---|---|---|
Metric Size (mm) | Imperial Size (inch) | Inner Diameter (mm) | Outer Diameter (mm) | Inner Diameter (mm) | Outer Diameter (mm) | |
6 | 1/8" | 3.18 | 10.16 | 10.16 | 28 | 3.18 |
7 | 3/16" | 28 | 4 | |||
8 | 1/4" | 6.35 | 13.66 | 13.66 | 19 | 6.35 |
9 | 5/16" | 19 | 8 | |||
10 | 3/8" | 9.53 | 17.17 | 17.17 | 19 | 9.53 |
15 | 1/2" | 12.7 | 21.51 | 21.51 | 14 | 12.7 |
18 | 5/8" | 14 | 15.88 | |||
20 | 3/4" | 19.04 | 27 | 27 | 14 | 19.04 |
25 | 1" | 25.4 | 33.93 | 33.93 | 11 | 25.4 |
32 | 11/4" | 31.75 | 42.59 | 42.59 | 11 | 31.75 |
40 | 11/2" | 38.1 | 48.48 | 48.48 | 11 | 38.1 |
50 | 2" | 50.8 | 60.47 | 60.47 | 11 | 50.8 |
65 | 21/2" | 63.5 | 76.09 | 76.09 | 11 | 63.5 |
80 | 3" | 76.26 | 88.87 | 88.87 | 11 | 76.26 |
100 | 4" | 101.07 | 114.14 | 114.14 | 11 | 101.07 |
150 | 6" | 152 | 165.12 | 165.12 | 11 | 152 |
