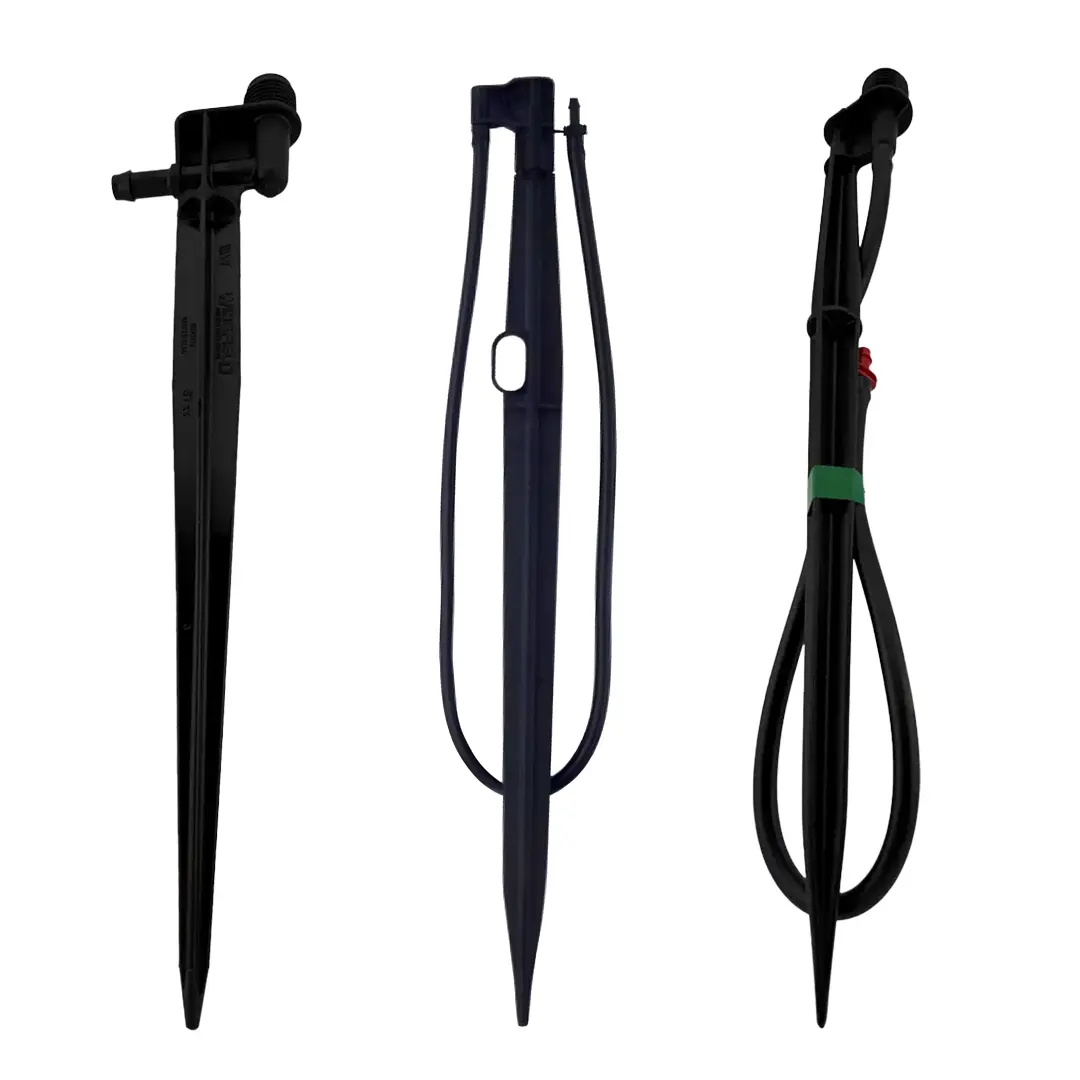

Philmac Landscape & Irrigation Stakes are purpose-built to support irrigation across farms, landscapes, and gardens. Featuring a robust “hammer head” design, these stakes offer flexibility with a screwed inlet compatible with various 4mm emitters. Positioned away from the main tube, they can be easily adjusted as plants grow, allowing for professional and adaptable irrigation setups. A retention hole helps keep the supply tube neatly in place. Made from tough engineering plastic, these stakes ensure a reliable, long-lasting solution for efficient plant support and watering.
Philmac’s micro irrigation solutions are crafted for both landscape and agriculture needs. The static fittings have been designed to suit Low Density Polyethylene (LDPE) pipe with an expected maximum pressure of 300 kPa. Metric sizes referred to from 4 to 32 mm are nominal inside diameter, corresponding to imperial sizes: 1/4” (6 mm), 3/8” (10 mm), 1/2” (13 mm), 5/8” (16 mm), 3/4” (19 mm), 1” (25 mm), and 1 1/4” (32 mm). These fittings and accessories, made from high-quality materials, work seamlessly with a broad range of LDPE pipe fittings, including sprinklers, drippers, and spray jets. This ensures reliable performance across different irrigation tasks.
Philmac also offers barbed elbows, barbed joiners and reducing joiners, as well as barbed tees and reducing tees, to ensure a flexible and efficient micro irrigation system setup. These components are essential for connecting different sizes and configurations of pipes and tubes, making the installation process straightforward and adaptable to various irrigation needs.
Features
- Assembled Stake HD4A (LST4A): 500mm Tube with 4mm Tube and Adaptor (Stake Length: 310mm)
- Assembled Stake HD5A (STO5A): 500mm Tube with 5mm Tube and Adaptor (Stake Length: 310mm)
- Combination Stake ST10: One piece stake and head – Inlet 10 mm barb – Outlet, 3/8” female ID thread and 1/2” male OD thread (Stake Length: 270mm)
- Type: Assembled Stakes / Combination Stakes
- Group Type: Stakes & Heads
- Material: Polyethylene
- Max Pressure Rating: 300kPa
- Max Temperature Rating: 60°C
- Compatibility: Works seamlessly with a broad range of LDPE pipe fittings, including sprinklers, drippers, and spray jets.
- Applications: Suitable for domestic gardens, commercial landscapes, and horticultural applications.
Size | Male Fitting End | Female Fitting End | Threads Per Inch | Actual Barb End | ||
---|---|---|---|---|---|---|
Metric Size (mm) | Imperial Size (inch) | Inner Diameter (mm) | Outer Diameter (mm) | Inner Diameter (mm) | Outer Diameter (mm) | |
6 | 1/8" | 3.18 | 10.16 | 10.16 | 28 | 3.18 |
7 | 3/16" | 28 | 4 | |||
8 | 1/4" | 6.35 | 13.66 | 13.66 | 19 | 6.35 |
9 | 5/16" | 19 | 8 | |||
10 | 3/8" | 9.53 | 17.17 | 17.17 | 19 | 9.53 |
15 | 1/2" | 12.7 | 21.51 | 21.51 | 14 | 12.7 |
18 | 5/8" | 14 | 15.88 | |||
20 | 3/4" | 19.04 | 27 | 27 | 14 | 19.04 |
25 | 1" | 25.4 | 33.93 | 33.93 | 11 | 25.4 |
32 | 11/4" | 31.75 | 42.59 | 42.59 | 11 | 31.75 |
40 | 11/2" | 38.1 | 48.48 | 48.48 | 11 | 38.1 |
50 | 2" | 50.8 | 60.47 | 60.47 | 11 | 50.8 |
65 | 21/2" | 63.5 | 76.09 | 76.09 | 11 | 63.5 |
80 | 3" | 76.26 | 88.87 | 88.87 | 11 | 76.26 |
100 | 4" | 101.07 | 114.14 | 114.14 | 11 | 101.07 |
150 | 6" | 152 | 165.12 | 165.12 | 11 | 152 |
