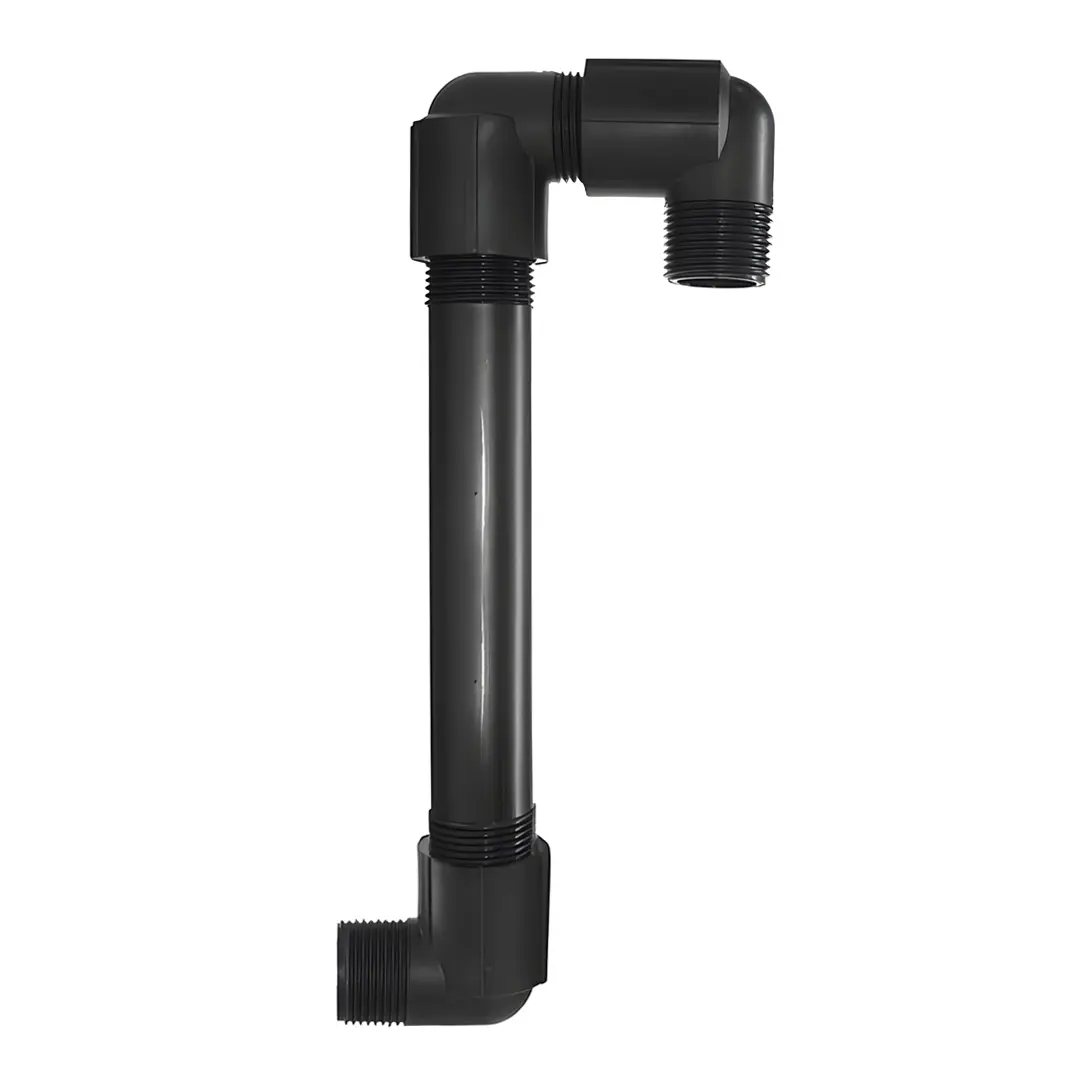

Philmac Poly Articulated Riser Male BSP Thread Micro Irrigation 1″ x 300mm

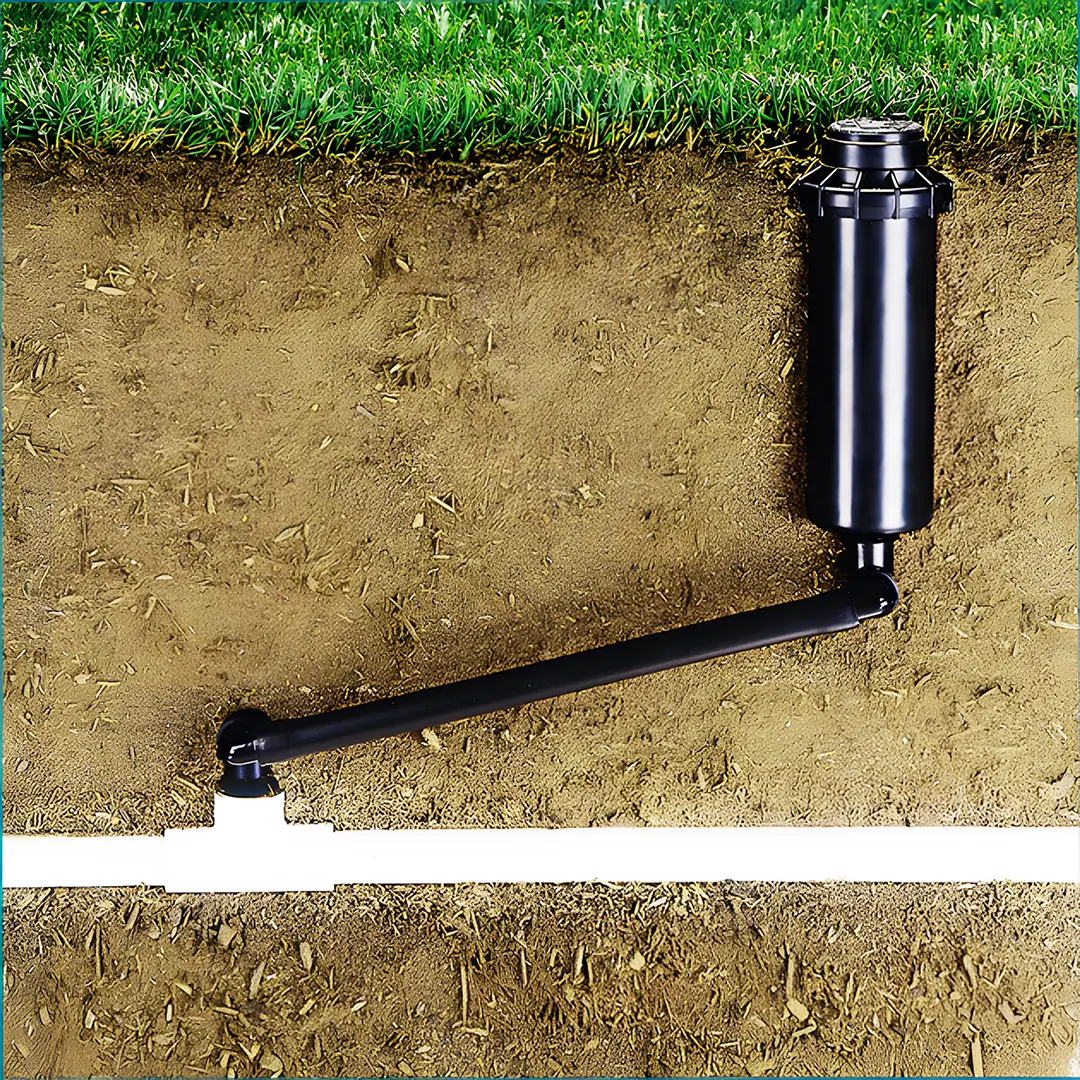

Philmac’s Articulated Riser with three elbows and O-rings makes it easy to adjust the height between the lateral pipe and sprinkler head, so the sprinkler sits just right at ground level. With 25mm BSP threads and O-rings for a secure seal, it’s a practical and flexible choice for any irrigation setup.

Philmac’s micro irrigation solutions are crafted for both landscape and agriculture needs. The static fittings have been designed to suit Low Density Polyethylene (LDPE) pipe with an expected maximum pressure of 300 kPa. Metric sizes referred to from 4 to 32 mm are nominal inside diameter, corresponding to imperial sizes: 1/4” (6 mm), 3/8” (10 mm), 1/2” (13 mm), 5/8” (16 mm), 3/4” (19 mm), 1” (25 mm), and 1 1/4” (32 mm). These fittings and accessories, made from high-quality materials, work seamlessly with a broad range of LDPE pipe fittings, including sprinklers, drippers, and spray jets. This ensures reliable performance across different irrigation tasks.

Philmac also offers barbed elbows, barbed joiners and reducing joiners, as well as barbed tees and reducing tees, to ensure a flexible and efficient micro irrigation system setup. These components are essential for connecting different sizes and configurations of pipes and tubes, making the installation process straightforward and adaptable to various irrigation needs.

Features

• Type: Articulated Risers with 3 Elbows & O-Rings
• Group Type: Static Fittings
• Size Range: 25mm (1″)
• Length: 300mm
• Material: Polyethylene
• Max Pressure Rating: 300kPa
• Max Temperature Rating: 60°C
• Compatibility: Works seamlessly with a broad range of LDPE pipe fittings, including sprinklers, drippers, and spray jets.
• Applications: Suitable for domestic gardens, commercial landscapes, and horticultural applications.
