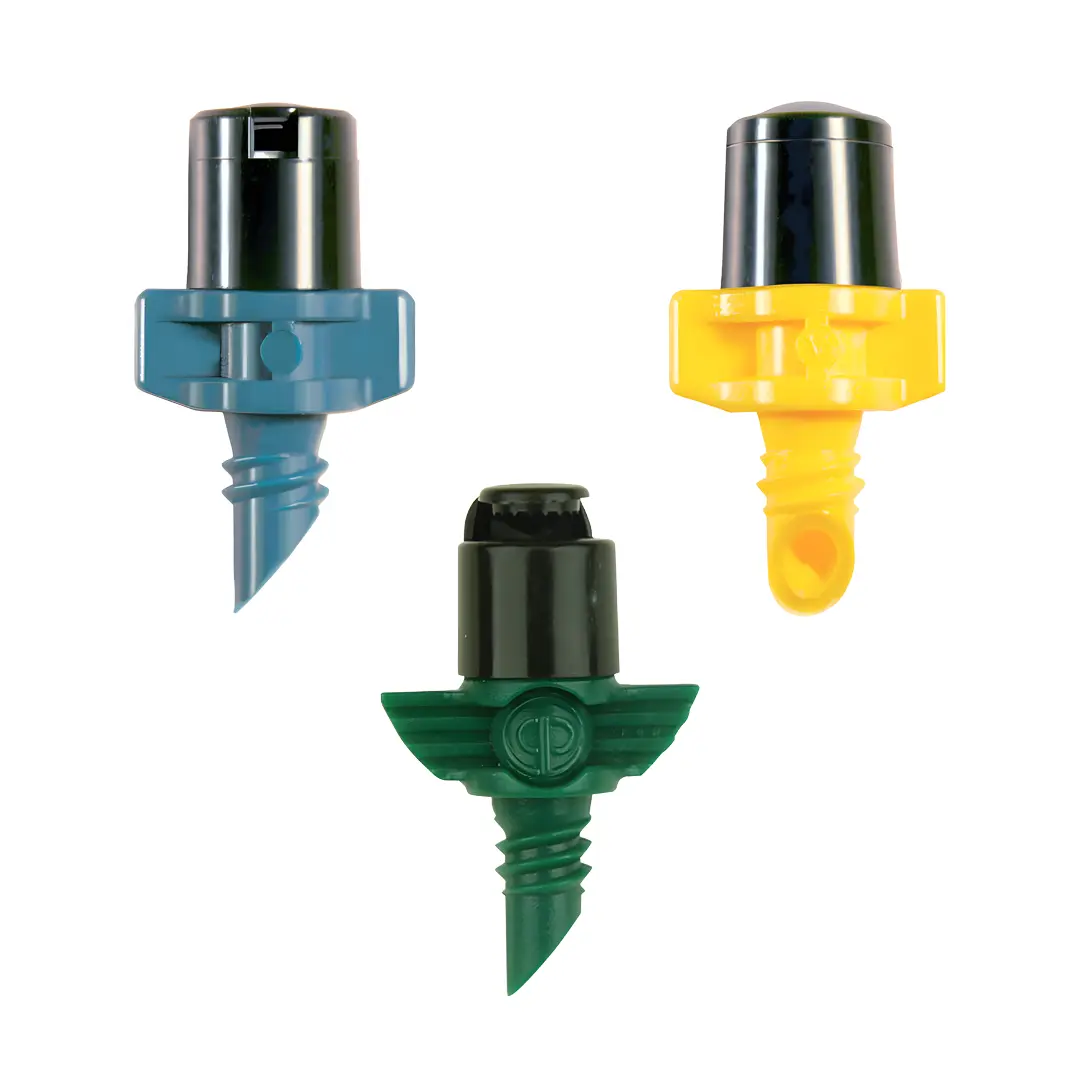

Philmac 2-Piece Micro Spray Jets offer flexible and precise watering solutions for gardens, landscapes, and agricultural setups. These multi-purpose, multi-directional spray jets are designed with a two-piece snap-fit cap and nozzle, making them easy to install and adjust. With a 4mm threaded inlet, they connect seamlessly to most micro irrigation systems, providing reliable performance for various planting needs.
Choose from a range of spray patterns to suit your setup, including a fine mist for gentle watering, a 180-degree cap spray for broader coverage, and two 40-degree strip patterns for targeted watering along narrow beds or borders. This versatility makes the Philmac Micro Spray Jets ideal for everything from delicate plants to larger garden areas, offering even, consistent water distribution. Built for durability and ease of use, these spray jets help maintain healthy plants and efficient water use, making them a valuable addition to any irrigation system.
Philmac’s micro irrigation solutions are crafted for both landscape and agriculture needs. The static fittings have been designed to suit Low Density Polyethylene (LDPE) pipe with an expected maximum pressure of 300 kPa. Metric sizes referred to from 4 to 32 mm are nominal inside diameter, corresponding to imperial sizes: 1/4” (6 mm), 3/8” (10 mm), 1/2” (13 mm), 5/8” (16 mm), 3/4” (19 mm), 1” (25 mm), and 1 1/4” (32 mm). These fittings and accessories, made from high-quality materials, work seamlessly with a broad range of LDPE pipe fittings, including sprinklers, drippers, and spray jets. This ensures reliable performance across different irrigation tasks.
Philmac also offers barbed elbows, barbed joiners and reducing joiners, as well as barbed tees and reducing tees, to ensure a flexible and efficient micro irrigation system setup. These components are essential for connecting different sizes and configurations of pipes and tubes, making the installation process straightforward and adaptable to various irrigation needs.
Features
- 4mm Two Piece Spray – (Blue) – Strip Pattern: 2 x 20° strips 2.9m radius – 33 L/h @ 100 kPa
- 4mm Two Piece Spray – (Yellow) – Mister: 0.4m radius – 18 L/h @ 100 kPa
- 4mm Two Piece Spray – (Green) – 180° Cap: 2.0 m radius – 60 L/h @ 100 kPa
- Type: Two Piece Spray Jets
- Group Type: Spray Jets
- Threaded Inlet Size: 4mm
- Material: Polyethylene
- Max Pressure Rating: 300kPa
- Max Temperature Rating: 60°C
- Compatibility: Works seamlessly with a broad range of LDPE pipe fittings, including sprinklers, drippers, and spray jets.
- Applications: Suitable for domestic gardens, commercial landscapes, and horticultural applications.
Size | Male Fitting End | Female Fitting End | Threads Per Inch | Actual Barb End | ||
---|---|---|---|---|---|---|
Metric Size (mm) | Imperial Size (inch) | Inner Diameter (mm) | Outer Diameter (mm) | Inner Diameter (mm) | Outer Diameter (mm) | |
6 | 1/8" | 3.18 | 10.16 | 10.16 | 28 | 3.18 |
7 | 3/16" | 28 | 4 | |||
8 | 1/4" | 6.35 | 13.66 | 13.66 | 19 | 6.35 |
9 | 5/16" | 19 | 8 | |||
10 | 3/8" | 9.53 | 17.17 | 17.17 | 19 | 9.53 |
15 | 1/2" | 12.7 | 21.51 | 21.51 | 14 | 12.7 |
18 | 5/8" | 14 | 15.88 | |||
20 | 3/4" | 19.04 | 27 | 27 | 14 | 19.04 |
25 | 1" | 25.4 | 33.93 | 33.93 | 11 | 25.4 |
32 | 11/4" | 31.75 | 42.59 | 42.59 | 11 | 31.75 |
40 | 11/2" | 38.1 | 48.48 | 48.48 | 11 | 38.1 |
50 | 2" | 50.8 | 60.47 | 60.47 | 11 | 50.8 |
65 | 21/2" | 63.5 | 76.09 | 76.09 | 11 | 63.5 |
80 | 3" | 76.26 | 88.87 | 88.87 | 11 | 76.26 |
100 | 4" | 101.07 | 114.14 | 114.14 | 11 | 101.07 |
150 | 6" | 152 | 165.12 | 165.12 | 11 | 152 |
