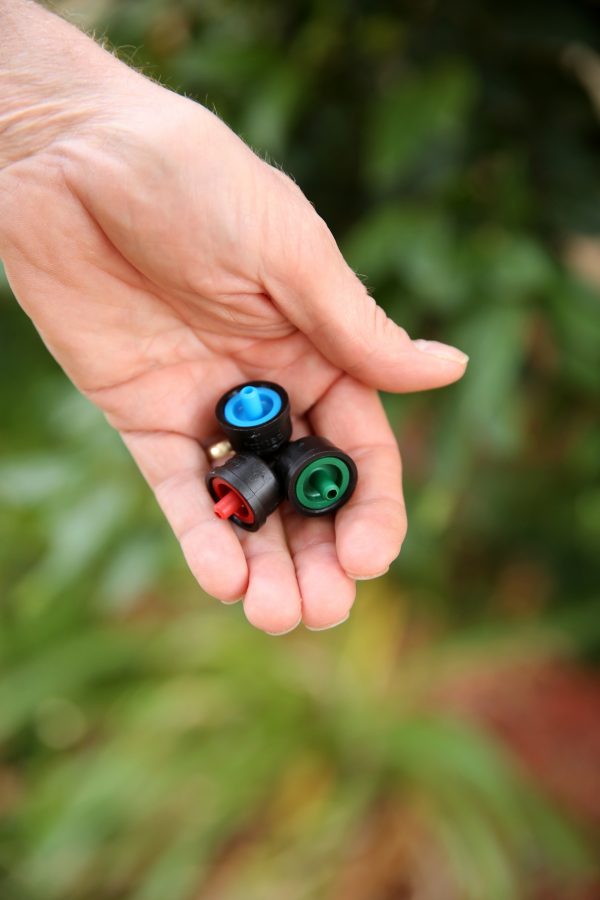

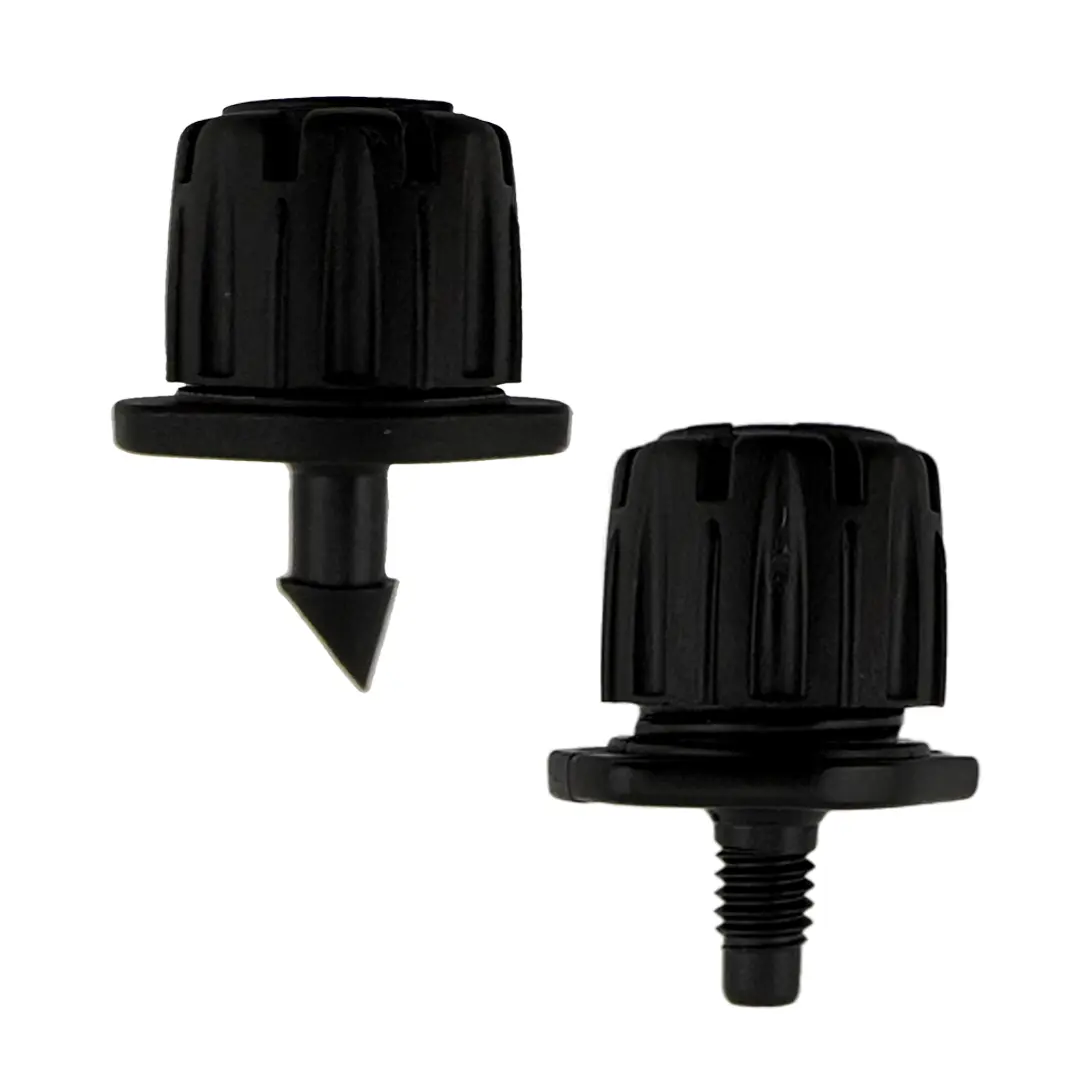

Philmac Octa-Emitters are versatile, adjustable drippers ideal for efficient watering in gardens, planter boxes, and agricultural setups. Designed with an 8-outlet high discharge, they allow easy control of water flow from a gentle drip to a high-volume bubbler, and even to 8 steady streams. With both barbed and threaded inlet options, they suit various irrigation systems, delivering up to 60 L/h at 200 kPa. Each click of the cap adjusts the flow rate and stream diameter, offering precision for any planting need. The pressure-compensating version maintains a consistent flow rate, making it especially useful for applications where steady water distribution is crucial. Built with a solid two-piece frame, these emitters are durable and easy to install, offering long-lasting, reliable performance for everything from small pots to large landscape areas.
Philmac’s micro irrigation solutions are crafted for both landscape and agriculture needs. The static fittings have been designed to suit Low Density Polyethylene (LDPE) pipe with an expected maximum pressure of 300 kPa. Metric sizes referred to from 4 to 32 mm are nominal inside diameter, corresponding to imperial sizes: 1/4” (6 mm), 3/8” (10 mm), 1/2” (13 mm), 5/8” (16 mm), 3/4” (19 mm), 1” (25 mm), and 1 1/4” (32 mm). These fittings and accessories, made from high-quality materials, work seamlessly with a broad range of LDPE pipe fittings, including sprinklers, drippers, and spray jets. This ensures reliable performance across different irrigation tasks.
Philmac also offers barbed elbows, barbed joiners and reducing joiners, as well as barbed tees and reducing tees, to ensure a flexible and efficient micro irrigation system setup. These components are essential for connecting different sizes and configurations of pipes and tubes, making the installation process straightforward and adaptable to various irrigation needs.
Features
- Type: Adjustable & High Discharge Octa-Emitter Drippers
- Group Type: Drippers
- Inlet Size: 4mm
- Material: Polyethylene
- Max Pressure Rating: 300kPa
- Max Temperature Rating: 60°C
- Compatibility: Works seamlessly with a broad range of LDPE pipe fittings, including sprinklers, drippers, and spray jets.
- Applications: Suitable for domestic gardens, commercial landscapes, and horticultural applications.
Size | Male Fitting End | Female Fitting End | Threads Per Inch | Actual Barb End | ||
---|---|---|---|---|---|---|
Metric Size (mm) | Imperial Size (inch) | Inner Diameter (mm) | Outer Diameter (mm) | Inner Diameter (mm) | Outer Diameter (mm) | |
6 | 1/8" | 3.18 | 10.16 | 10.16 | 28 | 3.18 |
7 | 3/16" | 28 | 4 | |||
8 | 1/4" | 6.35 | 13.66 | 13.66 | 19 | 6.35 |
9 | 5/16" | 19 | 8 | |||
10 | 3/8" | 9.53 | 17.17 | 17.17 | 19 | 9.53 |
15 | 1/2" | 12.7 | 21.51 | 21.51 | 14 | 12.7 |
18 | 5/8" | 14 | 15.88 | |||
20 | 3/4" | 19.04 | 27 | 27 | 14 | 19.04 |
25 | 1" | 25.4 | 33.93 | 33.93 | 11 | 25.4 |
32 | 11/4" | 31.75 | 42.59 | 42.59 | 11 | 31.75 |
40 | 11/2" | 38.1 | 48.48 | 48.48 | 11 | 38.1 |
50 | 2" | 50.8 | 60.47 | 60.47 | 11 | 50.8 |
65 | 21/2" | 63.5 | 76.09 | 76.09 | 11 | 63.5 |
80 | 3" | 76.26 | 88.87 | 88.87 | 11 | 76.26 |
100 | 4" | 101.07 | 114.14 | 114.14 | 11 | 101.07 |
150 | 6" | 152 | 165.12 | 165.12 | 11 | 152 |
