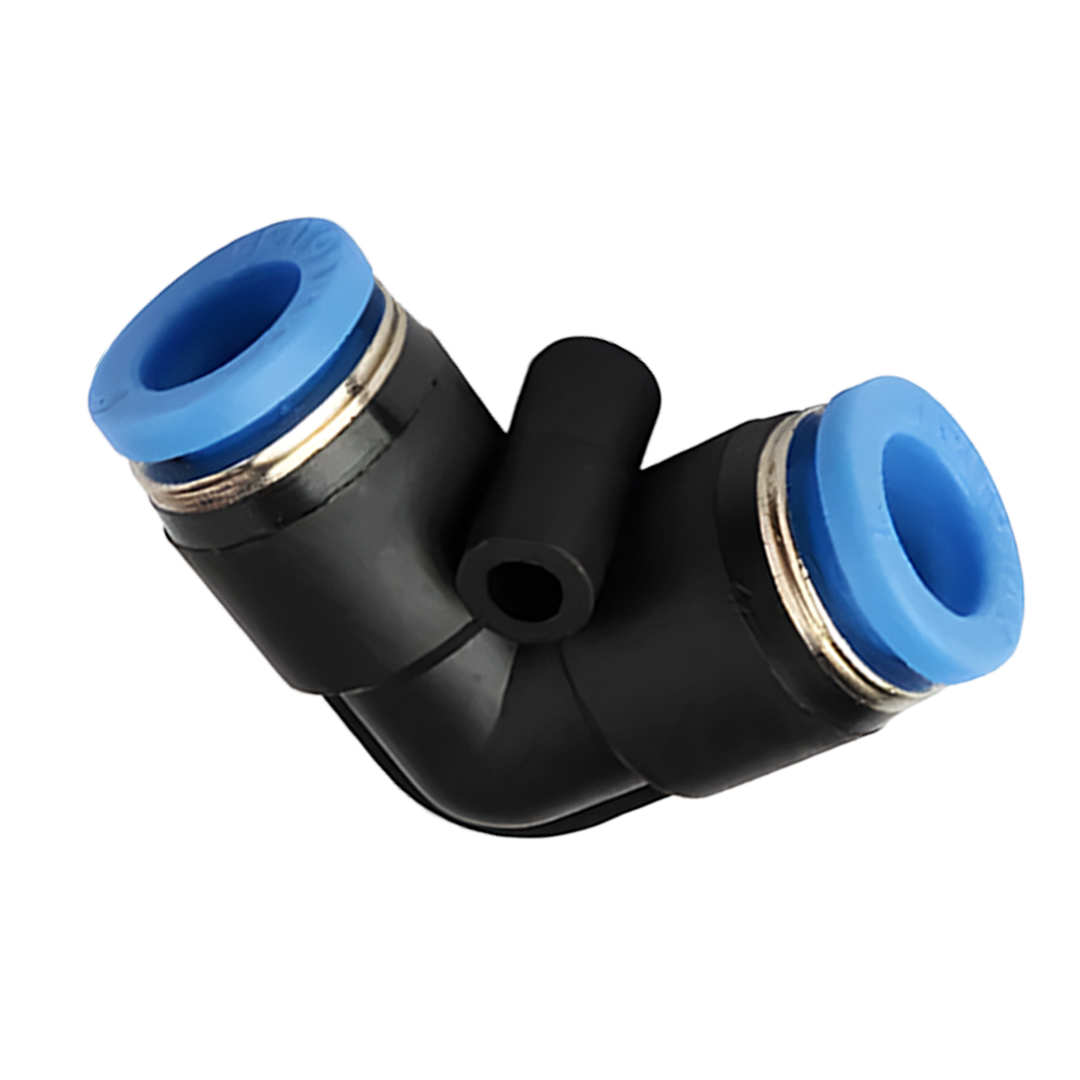

Nylon Elbow Metric Tube Joiner Push In Air Fitting
$5.28 – $7.73 Inc. GST
Push-In Fittings – your go-to solution for a wide range of applications, from industrial control panels and valves to residential plumbing and general purpose uses. Crafted for simplicity and efficiency, these fittings offer an intuitive push-to-connect design that ensures a secure fit without the need for tools, clamps, adhesives, or soldering. The perfect pneumatic fitting!
Made from robust UV resistant composite plastic, nickel-plated brass, and nitrile for the seals, these fittings are designed to withstand up to 150 psi of pressure. The nickel-plated brass body provides excellent anti-contamination properties, ensuring longevity and reliability. Whether you’re working with air, inert gases, or some liquids, our fittings deliver consistent performance.
Connecting your polyurethane or nylon tubing is effortless: just push the tube into the fitting until it locks into place. To disconnect, simply press the collar back towards the fitting and pull the tube away. This quick connection and disconnection process makes maintenance and adjustments a breeze.
Perfect for use in confined spaces, the six-angle wrench design and corrosion-resistant materials ensure our fittings meet your needs in even the most challenging environments. With an operating temperature range of -18 to +70°C, they are ready for use in a variety of settings.
Embrace the ease and reliability of our Push Fit Fittings, designed to make your job simpler and more efficient, whether at home or in an industrial setting.
- Size range: 6mm to 12mm
- Type: 90 Degree Male Elbow Joiner
- Suitable Applications: Air, Water & Inert Gases
- Thread: BSPT (Tapered BSP Thread)
- Tube Type: Metric Tube Sizes
- Materials: UV Black Plastic, Nitrile O Ring
| Size | Male Fitting End | Female Fitting End | Threads Per Inch | Actual Barb End | ||
|---|---|---|---|---|---|---|
| Metric Size (mm) | Imperial Size (inch) | Inner Diameter (mm) | Outer Diameter (mm) | Inner Diameter (mm) | Outer Diameter (mm) | |
| 6 | 1/8" | 3.18 | 10.16 | 10.16 | 28 | 3.18 |
| 7 | 3/16" | 28 | 4 | |||
| 8 | 1/4" | 6.35 | 13.66 | 13.66 | 19 | 6.35 |
| 9 | 5/16" | 19 | 8 | |||
| 10 | 3/8" | 9.53 | 17.17 | 17.17 | 19 | 9.53 |
| 15 | 1/2" | 12.7 | 21.51 | 21.51 | 14 | 12.7 |
| 18 | 5/8" | 14 | 15.88 | |||
| 20 | 3/4" | 19.04 | 27 | 27 | 14 | 19.04 |
| 25 | 1" | 25.4 | 33.93 | 33.93 | 11 | 25.4 |
| 32 | 11/4" | 31.75 | 42.59 | 42.59 | 11 | 31.75 |
| 40 | 11/2" | 38.1 | 48.48 | 48.48 | 11 | 38.1 |
| 50 | 2" | 50.8 | 60.47 | 60.47 | 11 | 50.8 |
| 65 | 21/2" | 63.5 | 76.09 | 76.09 | 11 | 63.5 |
| 80 | 3" | 76.26 | 88.87 | 88.87 | 11 | 76.26 |
| 100 | 4" | 101.07 | 114.14 | 114.14 | 11 | 101.07 |
| 150 | 6" | 152 | 165.12 | 165.12 | 11 | 152 |
| Connection Type | Metric Tube |
|---|
