- A coupling (or coupler) (used in piping or plumbing) is a very short length of pipe or tube, with a socket at one or both ends that allows two pipes or tubes to be joined, threaded, welded (steel), brazed or soldered (copper, brass etc.) together.
- Threads for the screwed ends of fittings comply to the appropriate requirements of AS 1722 Part 1: Sealing pipe threads and also ISO 7-1.
- Female Ends: Normally supplied with parallel thread.
- Male Ends: Normally supplied with taper threads.
- Black Steel: These fittings are generally degreased and protected with a coating of light oil.
- BS EN 10241 “Steel Threaded Pipe Fittings, Screwed BSP Thread”.
- Australian Standard 1074 “Steel Tubes and Tubulars Threaded or suitable for Threading with Pipe Threads of Whitworth Form”.
- Australian Standard 1650 “Galvanised Coatings on Ferrous Articles”.

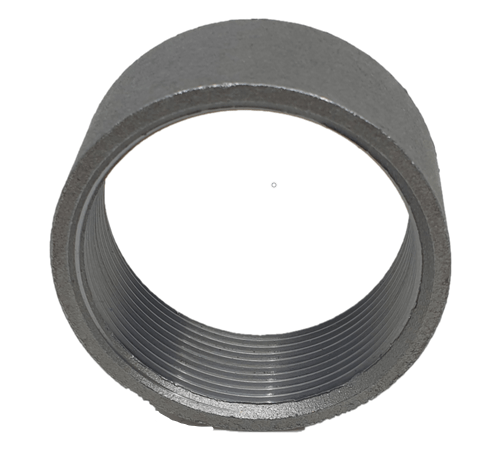

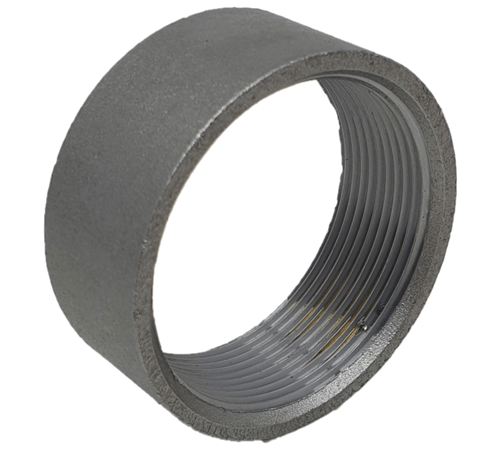

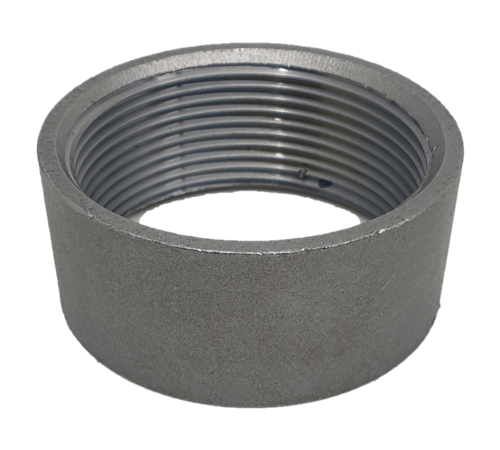

Black Steel Half Socket Female BSP Thread Pipe Fitting
Black steel coupling to AS 1722 & ISO 7-1. BSP threads: female parallel, male taper. BS EN 10241, AS1074 & AS1650 compliant. Lightly oiled, degreased.
Price range: $1.07 through $21.58 Inc. GST
Spend $200, get 10% off | Spend $300, get 15% off | Spend $400, get 20% off
Note: Items on sale are exempt from additional discounts.
Drawings - Measurements
| Imperial Size (inch) | A (mm) | C (mm) | Approx (kg/pc) |
|---|---|---|---|
| ⅜″ | 12.2 | 22.0 | 0.02 |
| ½″ | 16.0 | 27.0 | 0.03 |
| ¾″ | 19.1 | 32.5 | 0.04 |
| 1″ | 21.1 | 39.5 | 0.06 |
| 1¼″ | 28.1 | 49.0 | 0.11 |
| 1½″ | 25.3 | 56.0 | 0.17 |
| 2″ | 28.3 | 68.0 | 0.20 |
| 2½″ | 30.6 | 84.0 | 0.38 |
| 3″ | 35.7 | 98.0 | 0.43 |
| 4″ | 40.4 | 124.0 | 0.80 |
