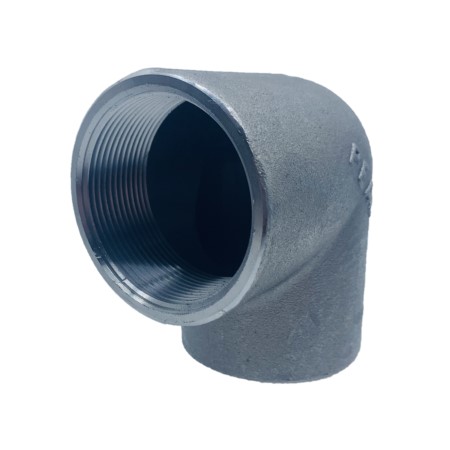

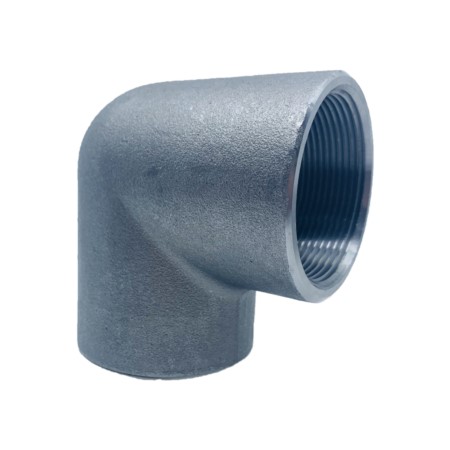

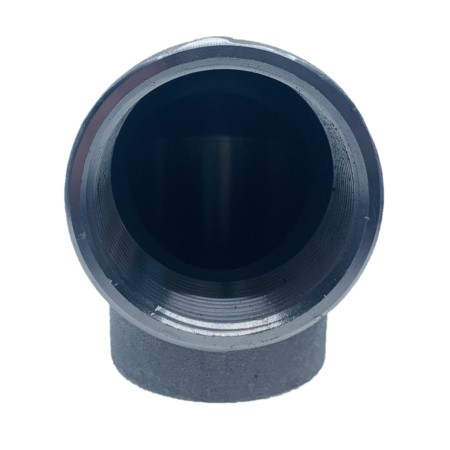

The Black Steel Elbow – 90 Deg – F&F – BSP Threaded is an essential component that brings convenience and efficiency to plumbing systems. With its superb construction and reliable performance, this elbow ensures a smooth and uninterrupted flow of fluids, making it a must-have for any plumbing project.
- Fitting Type: Elbow 90 Deg Female x Female
- Threads for the screwed ends of fittings comply to the appropriate requirements of AS 1722 Part 1: Sealing pipe threads and also ISO 7-1.
- Female Ends: Normally supplied with parallel thread.
- Male Ends: Normally supplied with taper threads.
- Black Steel: These fittings are generally degreased and protected with a coating of light oil.
- BS EN 10241 “Steel Threaded Pipe Fittings, Screwed BSP Thread”.
- Australian Standard 1074 “Steel Tubes and Tubulars Threaded or suitable for Threading with Pipe Threads of Whitworth Form”.
- Australian Standard 1650 “Galvanised Coatings on Ferrous Articles”.
Crafted with precision and meticulous attention to detail, this elbow boasts a fitting type of Elbow 90 Deg Female x Female. Its threaded ends comply with the necessary requirements of AS 1722 Part 1 and ISO 7- guaranteeing a secure and leak-free connection. The female ends are usually supplied with parallel threads, while the male ends come with taper threads, ensuring compatibility with various fittings and pipes.
Made from black steel, these fittings are meticulously degreased and coated with a layer of light oil, providing excellent protection against corrosion and ensuring longevity. The use of black steel not only enhances its durability but also adds to its aesthetic appeal, perfectly complementing any plumbing system.
Complying with the prestigious BS EN 10241 and Australian Standards 1074 and 1650, this elbow meets the highest industry standards, making it a trusted and reliable choice for plumbers and contractors alike. With its exceptional build quality, it guarantees unparalleled performance, even under high pressure and demanding conditions.
Size | Male Fitting End | Female Fitting End | Threads Per Inch | Actual Barb End | ||
---|---|---|---|---|---|---|
Metric Size (mm) | Imperial Size (inch) | Inner Diameter (mm) | Outer Diameter (mm) | Inner Diameter (mm) | Outer Diameter (mm) | |
6 | 1/8" | 3.18 | 10.16 | 10.16 | 28 | 3.18 |
7 | 3/16" | 28 | 4 | |||
8 | 1/4" | 6.35 | 13.66 | 13.66 | 19 | 6.35 |
9 | 5/16" | 19 | 8 | |||
10 | 3/8" | 9.53 | 17.17 | 17.17 | 19 | 9.53 |
15 | 1/2" | 12.7 | 21.51 | 21.51 | 14 | 12.7 |
18 | 5/8" | 14 | 15.88 | |||
20 | 3/4" | 19.04 | 27 | 27 | 14 | 19.04 |
25 | 1" | 25.4 | 33.93 | 33.93 | 11 | 25.4 |
32 | 11/4" | 31.75 | 42.59 | 42.59 | 11 | 31.75 |
40 | 11/2" | 38.1 | 48.48 | 48.48 | 11 | 38.1 |
50 | 2" | 50.8 | 60.47 | 60.47 | 11 | 50.8 |
65 | 21/2" | 63.5 | 76.09 | 76.09 | 11 | 63.5 |
80 | 3" | 76.26 | 88.87 | 88.87 | 11 | 76.26 |
100 | 4" | 101.07 | 114.14 | 114.14 | 11 | 101.07 |
150 | 6" | 152 | 165.12 | 165.12 | 11 | 152 |
Column Definitions:
Size (Imperial): Size designated to match the ID of Fitting in inches
Size (Metric): Size designated to match the ID of Fitting in mm
Male Thread ID (mm): The actual Inside diameter of the Male Fitting in millimetres.
Male Thread OD (mm): The actual outside diameter of the Male Fitting in millimetres
Female Thread ID (mm): The actual Inside diameter of the Female Fitting in millimetres.
Actual Barb OD (mm): The actual outside diameter of the Barbed fitting in millimetres.
The Black Steel Elbow – 90 Deg – F&F – BSP Threaded revolutionizes the way plumbing systems are set up. Its versatility and compatibility make it suitable for a wide range of applications, including residential, commercial, and industrial projects. Whether it’s creating a new system or repairing an existing one, this elbow promises ease of installation and exceptional performance.
Investing in the Black Steel Elbow – 90 Deg – F&F – BSP Threaded is a wise choice that ensures efficiency, reliability, and longevity. With its quality craftsmanship and adherence to industry standards,
