- Complete series of ½”, ¾”, 1″, 1¼”, 1½”, 2″, 3″ and 4″ BSP thread.
- Durable — Polypropylene is glass filled for rugged strength and durability.
- Economical and superior in performance.
- Most complete line of polypropylene couplings available.
- Maximum operating pressure 300 psi.
- Precision molded — insures uniform and accurate fit.
- Smooth operating — finger rings are designed for easy opening of cam levers.
- Stainless steel rings, arms, pins.
- EPDM gaskets.
- Versatile — interchangeable with all types of cam lever couplers.
- WARNING: Couplings should not be disconnected under pressure or with liquid in the line.

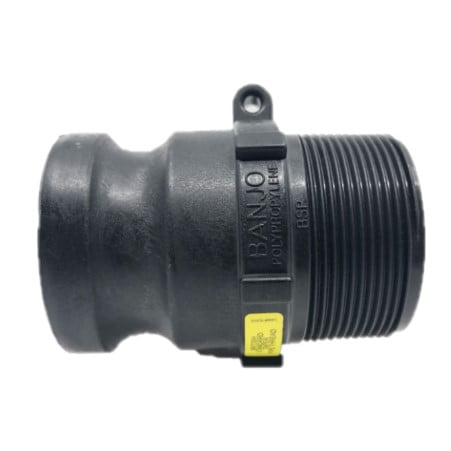

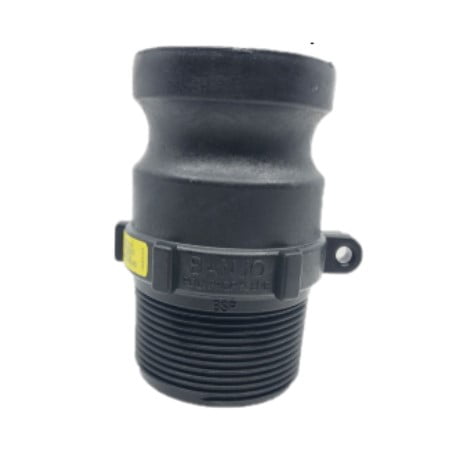

Banjo Poly Camlock Fitting Type F Male Adaptor x Male BSP Thread
Polypropylene male camlock adaptor, ½″-4″ BSP. 300PSI max. Glass-filled, SS parts, EPDM gaskets. Interchangeable & durable. Do not disconnect under pressure.
Price range: $14.06 through $53.31 Inc. GST
Spend $200, get 10% off | Spend $300, get 15% off | Spend $400, get 20% off
Note: Items on sale are exempt from additional discounts.

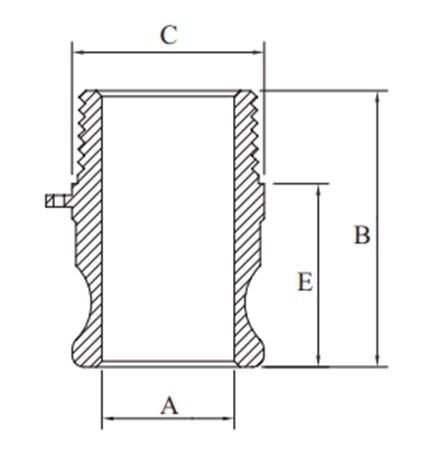

| SIZE | A | B | C | E | POLY KG/PC |
|---|---|---|---|---|---|
| ¾″ | 21 | 61 | 32 | 39 | 0.03 |
| 1″ | 24 | 71 | 40 | 48 | 0.04 |
| 1¼″ | 28.5 | 81 | 48 | 56 | 0.06 |
| 1½″ | 36 | 79 | 56 | 61 | 0.09 |
| 2″ | 45 | 87 | 67 | 62 | 0.15 |
| 3″ | 73 | 100 | 96 | 74 | 0.25 |

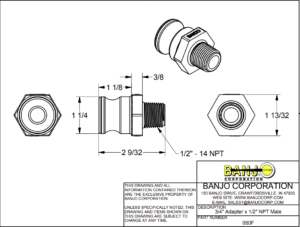

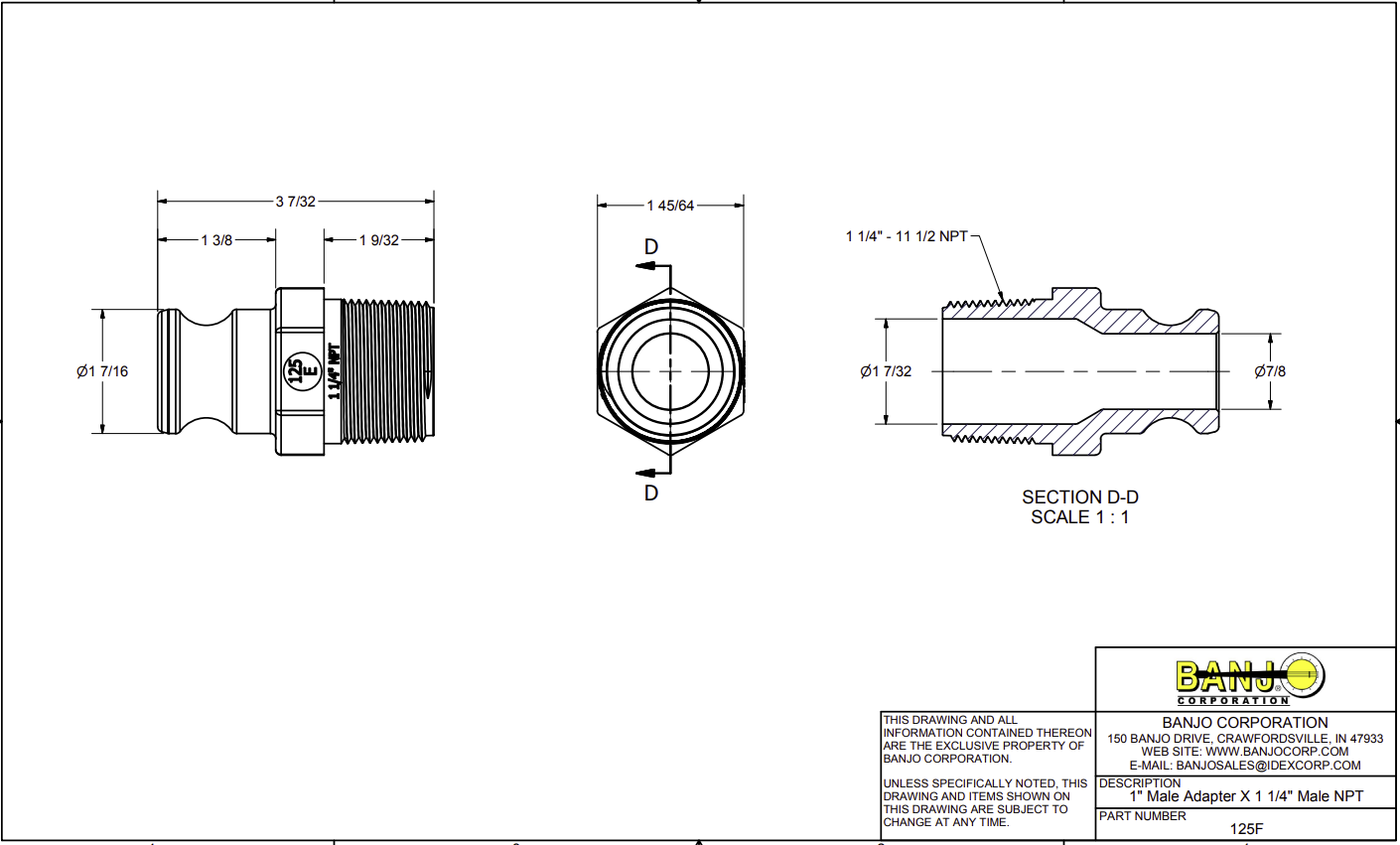

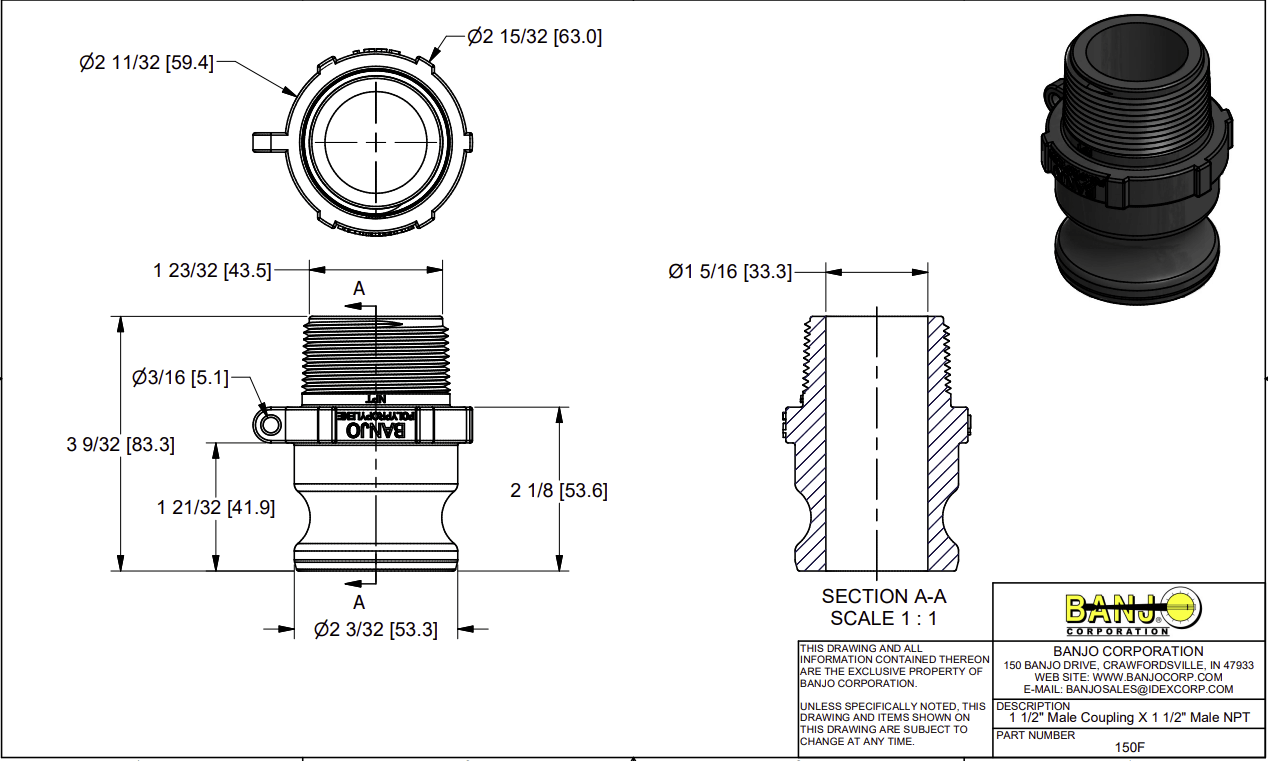

Drawings - 15mm

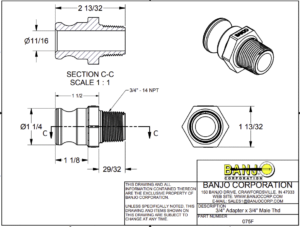

Drawings - 20mm

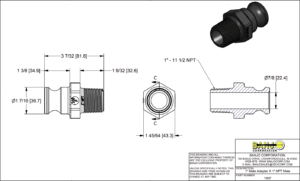

Drawings - 25mm
Drawings - 25x32mm
Drawings - 40mm

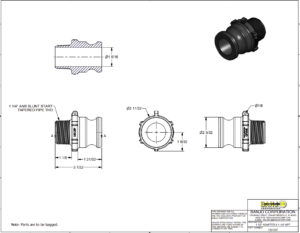

Drawings - 40x32mm

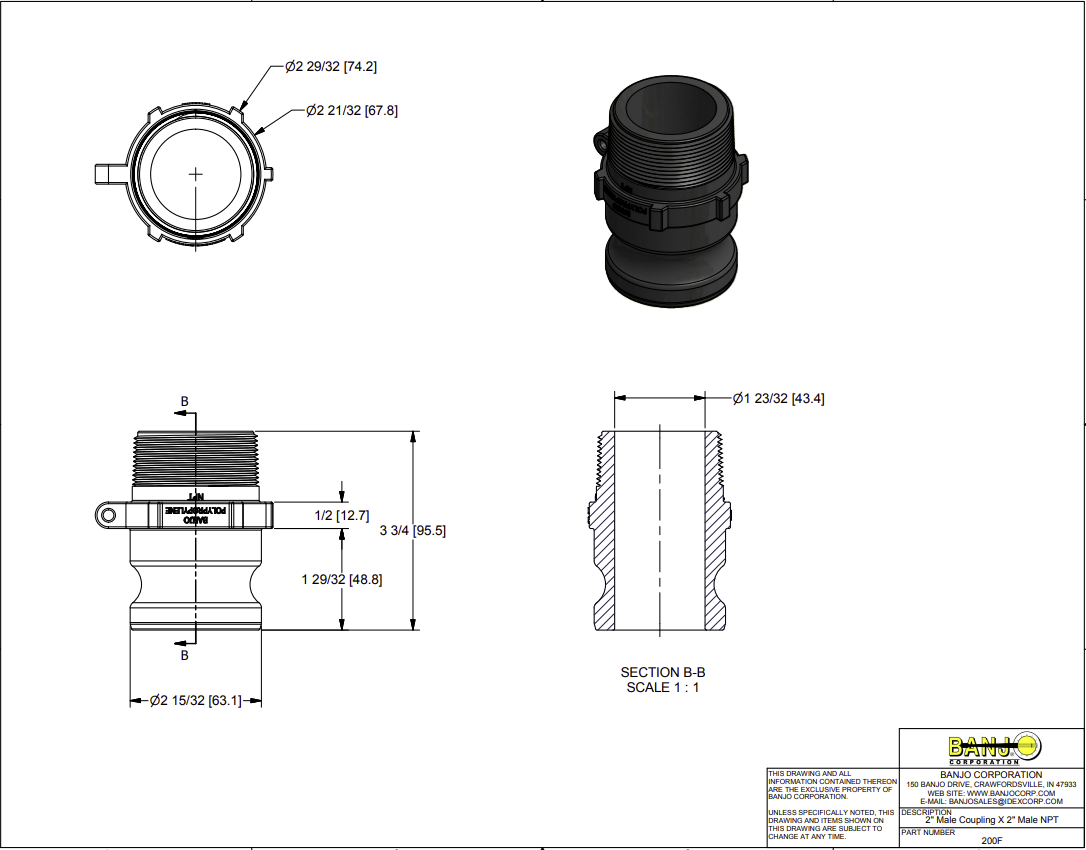

Drawings - 50mm

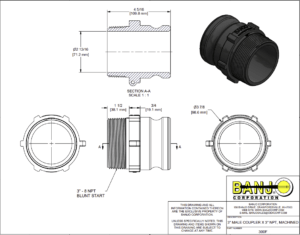

Drawings - 80mm
