- Complete series of ½”, ¾”, 1″, 1¼”, 1½”, 2″, 3″ and 4″ BSP thread.
- Durable — Polypropylene is glass filled for rugged strength and durability.
- Economical and superior in performance.
- Most complete line of polypropylene couplings available.
- Maximum operating pressure 300 psi.
- Precision molded — insures — uniform and accurate fit.
- Smooth operating — finger rings are designed for easy opening of cam levers.
- Stainless steel rings, arms — pins.
- EPDM gaskets.
- Versatile — interchangeable with all types of cam lever couplers.
- WARNING: Couplings should not be disconnected under pressure or with liquid in the line.

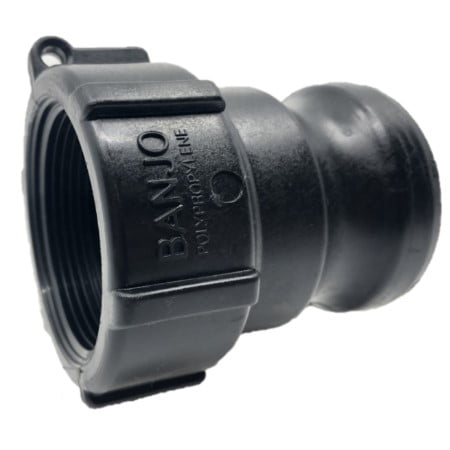

Banjo Poly Camlock Fitting Type A Male Adaptor x Female BSP Thread
Polypropylene camlock couplings, ½″-4″ BSP. Durable, 300PSI rated, EPDM gaskets, SS pins & arms. Interchangeable & easy to use. Do not disconnect under pressure.
Price range: $15.24 through $46.96 Inc. GST
Spend $200, get 10% off | Spend $300, get 15% off | Spend $400, get 20% off
Note: Items on sale are exempt from additional discounts.
| SIZE | A | B | C | POLY KG/PC |
|---|---|---|---|---|
| ¾″ | 21 | 41 | 32 | 0.02 |
| 1″ | 24 | 52 | 40 | 0.03 |
| 1¼″ | 28.5 | 54 | 48 | 0.04 |
| 1½″ | 36 | 57 | 56 | 0.07 |
| 2″ | 45 | 62 | 67 | 0.11 |
| 3″ | 73 | 71 | 96 | 0.19 |

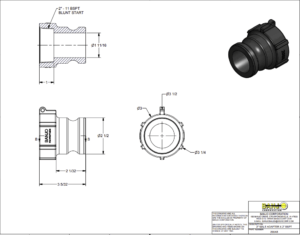

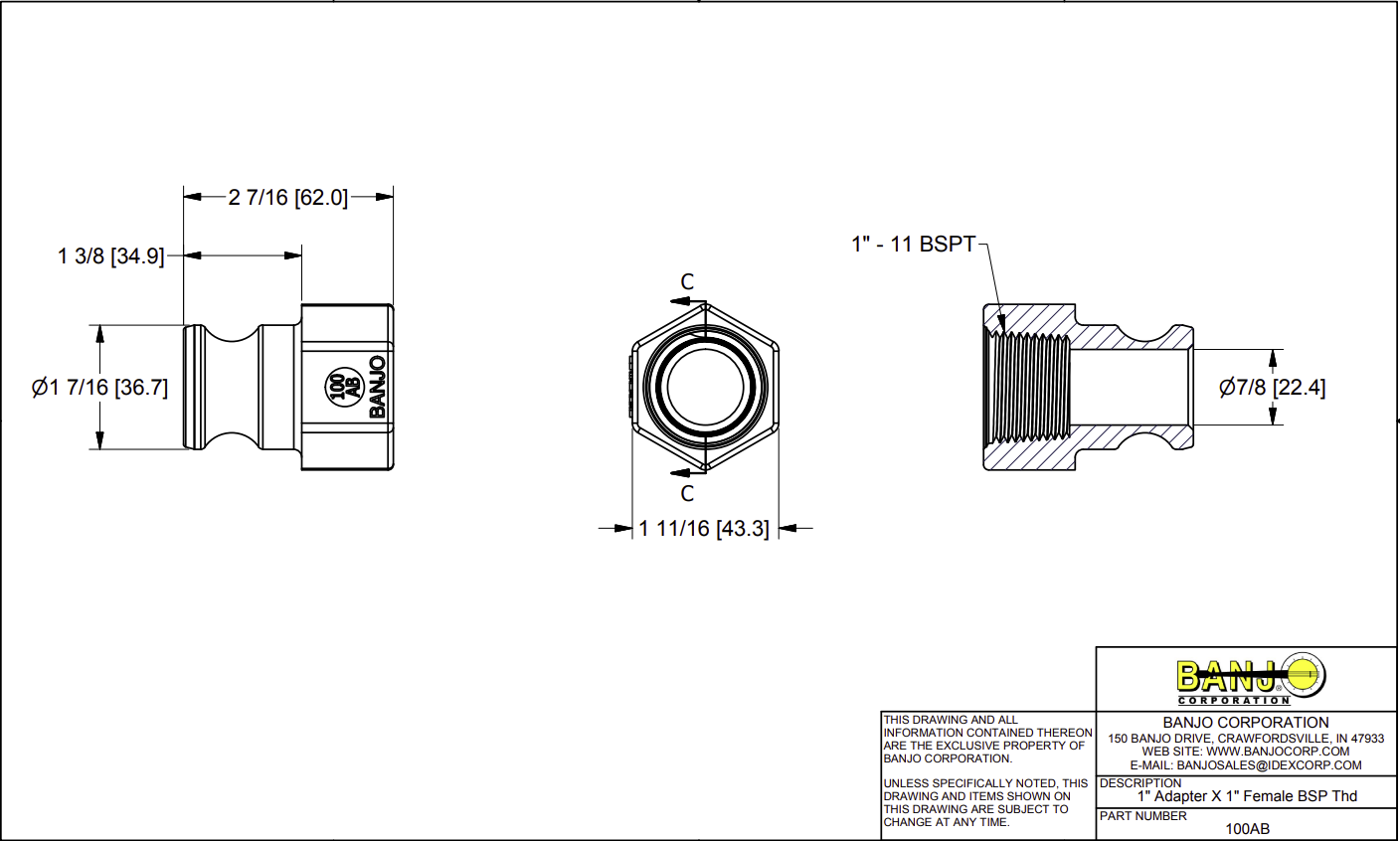

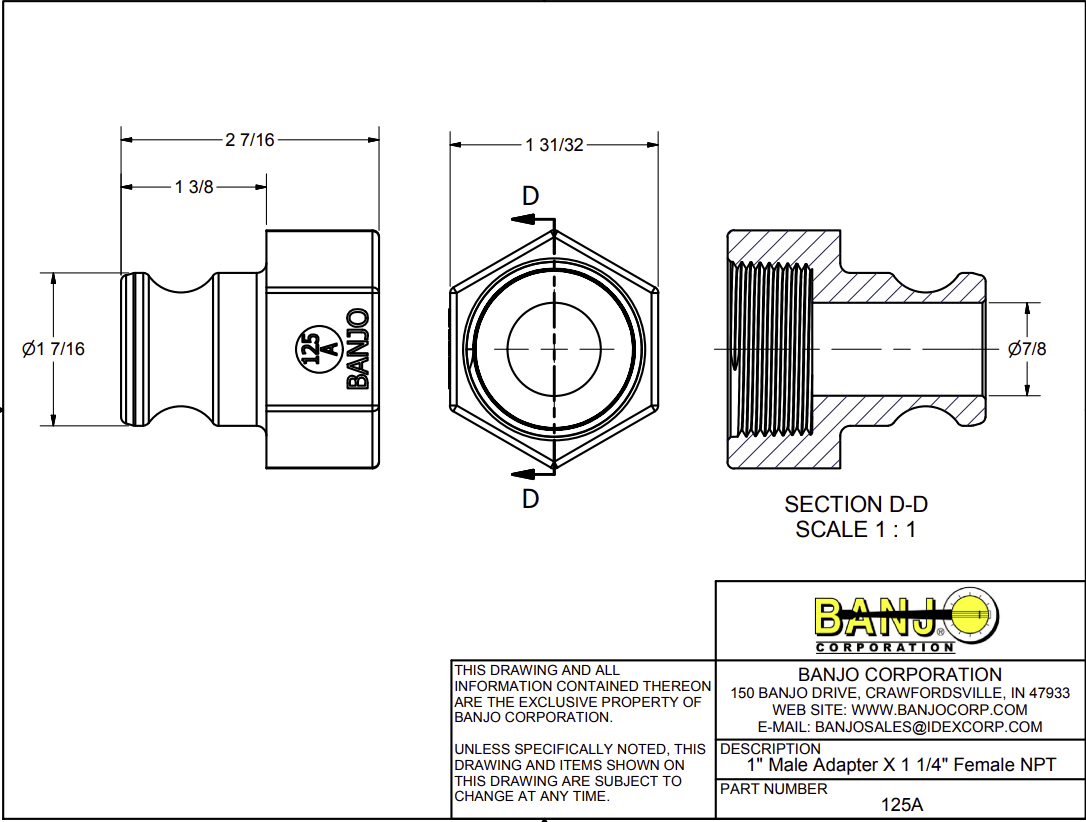

Drawings - 25mm

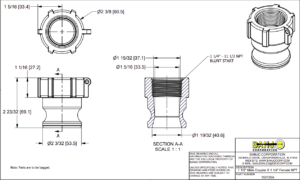

Drawings - 25x32mm

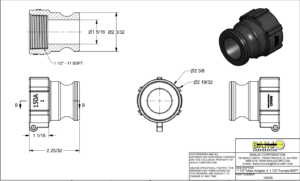

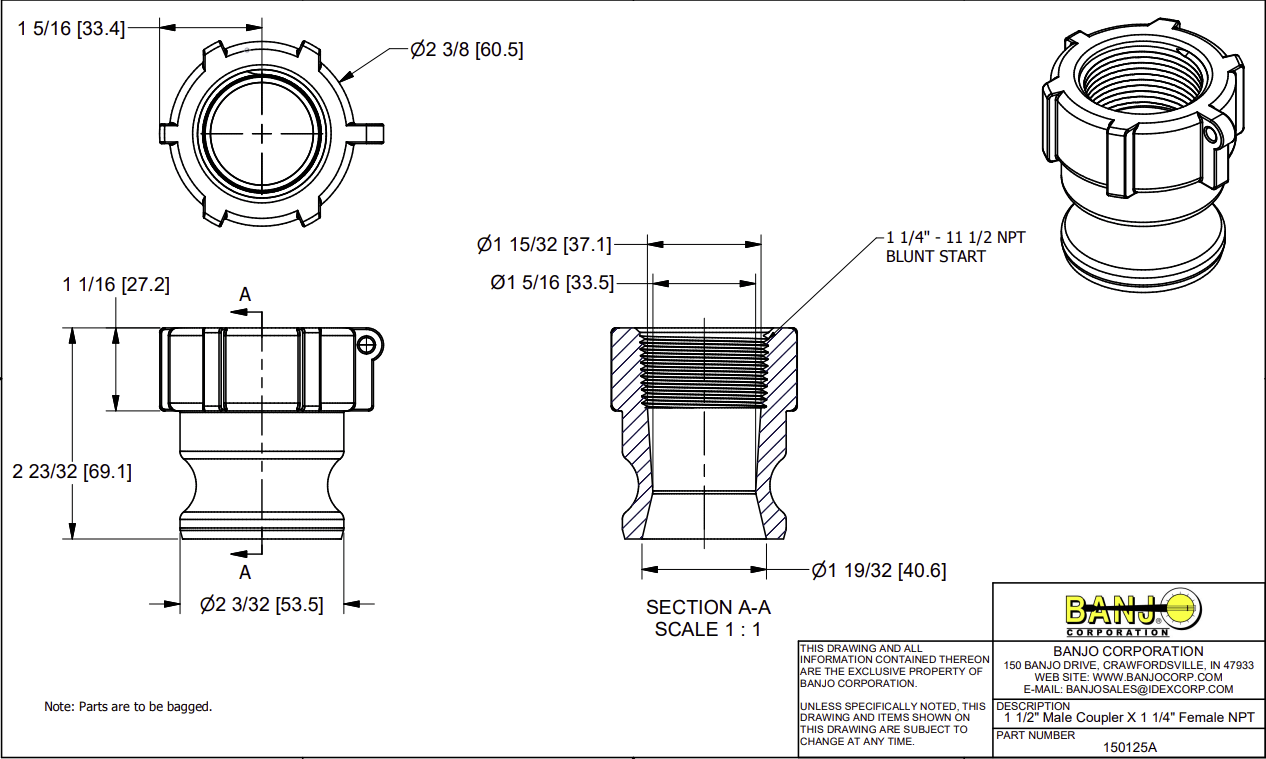

Drawings - 40mm
Drawings - 40x32mm
Drawings - 50mm

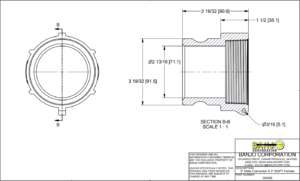

Drawings - 80mm
